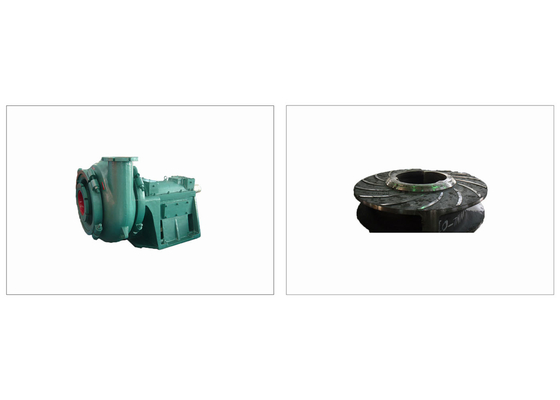

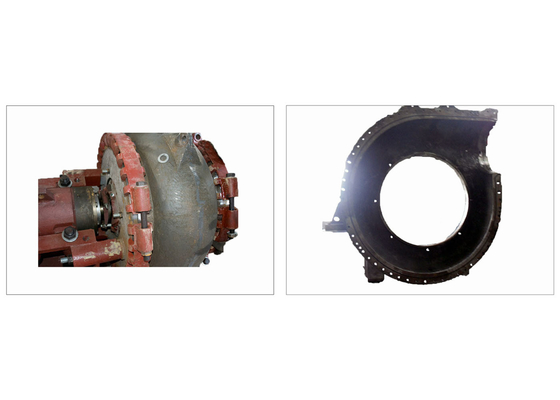

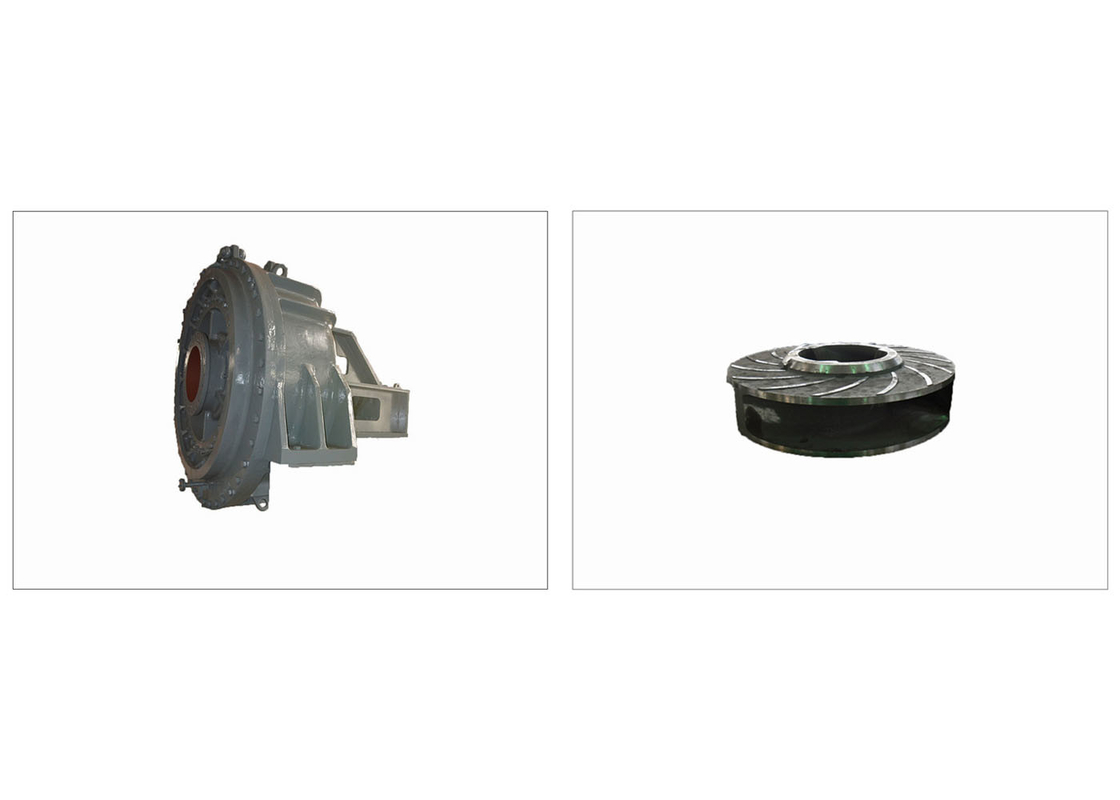

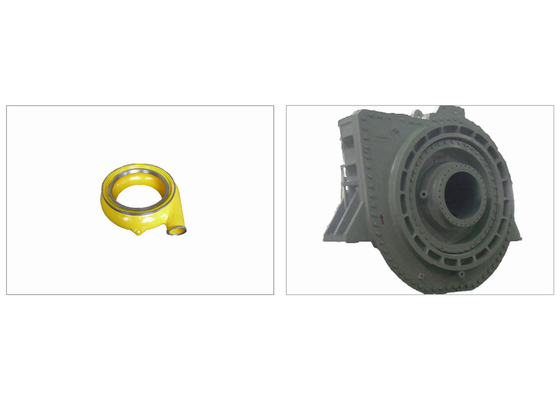

400L/Min Gravel Suction Sand Pump Parts Impeller Volute Casing

400L/Min Gravel Suction Sand Pump Parts Impeller Volute Casing

400L/Min Gravel Suction Sand Pump Parts Impeller Volute Casing
400L/Min Gravel Suction Sand Pump Parts Impeller Volute Casing 400L/Min Gravel Suction Sand Pump Parts Impeller Volute Casing 400L/Min Gravel Suction Sand Pump Parts Impeller Volute Casing 400L/Min Gravel Suction Sand Pump Parts Impeller Volute Casing

Large Image :  400L/Min Gravel Suction Sand Pump Parts Impeller Volute Casing

Product Details:
Model Number: G
Payment & Shipping Terms:
Minimum Order Quantity: one
Packaging Details: Wooden Package
Delivery Time: 30-40days
Payment Terms: TT
Supply Ability: 100 per month
Detailed Product Description
Place Of Origin: Hebei, China Max.Capacity: >400 L/min
Transfering Material: Ore,Sand,Coal,Slag,Ash Slurry,etc. Power Source: Diesel Engine, Electric
Voltage: 380v Or Customized Material: Cr27 Cr28 Chrome Alloy/A05/rubber
High Light:

400L/min Sand Pump Parts

,

Sand Pump Parts Impeller Volute casing

,

400L/Min Sand pump volute casing

Sand Gravel Suction Pump Flux Parts Abrasive-Resistant High Chrome Cast Iron Alloy Sand Pump Parts





Sand Gravel Pump Introduction:
1. Sand pump (dredge pump) is designed as single casing connected by means of clamp bands and wide wet-passage.

2. The wearing parts are made of ultra chromium abrasion-resistance alloys, long service life and very low failure rate.

3.The pumps are designed for continuously transferring strong corrosive big-solid -contained slurry which the
common slurry pump cannot transfer. They are widely used in dredging,sand excavation;mining,
explosive-sludge in metal melting, etc.

4. G series sand gravel pump is often installed on cutter suction dredger or barge.



OEM Service
Based on many years of rich experience in slurry pump manufacturing and design, we can undertake OEM customization for the whole set of pump and various spare parts. The slurry pump spare parts can be made of various material according to customer's requirement, Such as : Alloy 20, Hastelloy Alloy , A 61 and so on.





Pump parts materials show





No. ITEM MATERIAL
1 Impeller High-chrome alloy
Rubber
2 Volute casing High-chrome alloy
3 Front liner plate High-chrome alloy
Rubber
4 Rear liner plate High-chrome alloy
Rubber
5 Liner High-chrome alloy
6 Expeller High-chrome alloy
7 Shaft sleeve 3Cr13
8 Water-seal ring High-chrome alloy
9 Shaft 45#steel quenching And high temperature tempering
10 Bearing housing Gray iron
11 Expeller ring High-chrome alloy
Rubber
12 Front casing Gray iron or Nodular cast iron
13 Rear casing Gray iron or Nodular cast iron
14 Base Gray iron





OEM part codes

Here we list some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
A H Series Heavy Duty Slurry Pump Throat Bush code:
6/4 D-A H Slurry Pump code: E4083
6/4 E-A H Slurry Pump code: E4083
8/6 E-A H Slurry Pump code: F6083
8/6 F-A H Slurry Pump code: F6083
10/8 F-A H Slurry Pump code: F8083
10/8 ST-A H Slurry Pump code: G8083
12/10 ST-A H Slurry Pump code: G10083
14/12 ST-A H Slurry Pump code: G12083

G Series Sand Gravel Pump
12/10G-G Sand Gravel Pump Throat Bush code: FG10013
14/12G-G Sand Gravel Pump Throat Bush code: GG1412013
