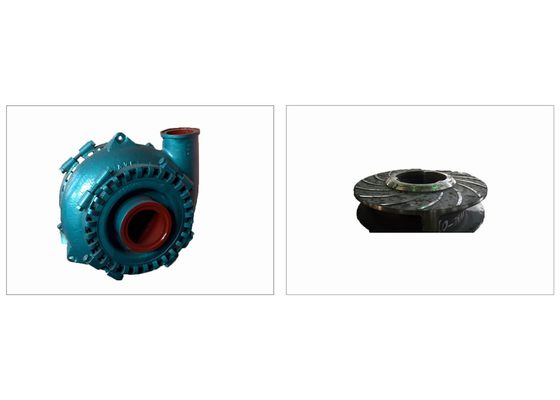

380V 400V Sand Pump Parts Anti Abrasive 2"-20" Outlet Impeller

Dredging Pump Use Flux Parts Replacements High Chrome Cast Iron Anti-Abrasive Long Life Sand Pump Parts

Sand Gravel Pump Introduction:
1. Sand pump (dredge pump) is designed as single casing connected by means of clamp bands and wide wet-passage.

2. The wearing parts are made of ultra chromium abrasion-resistance alloys, long service life and very low failure rate.

3.The pumps are designed for continuously transferring strong corrosive big-solid -contained slurry which the
common slurry pump cannot transfer. They are widely used in dredging,sand excavation;mining,
explosive-sludge in metal melting, etc.

Pump cover

Pump cover for pressure parts, use nodular cast iron; Impeller and volute, guard board, pump body as high hardness, wear resistance cast steel. Connection parts adopt bolt or screw connection, for rubber seal "O" type circle

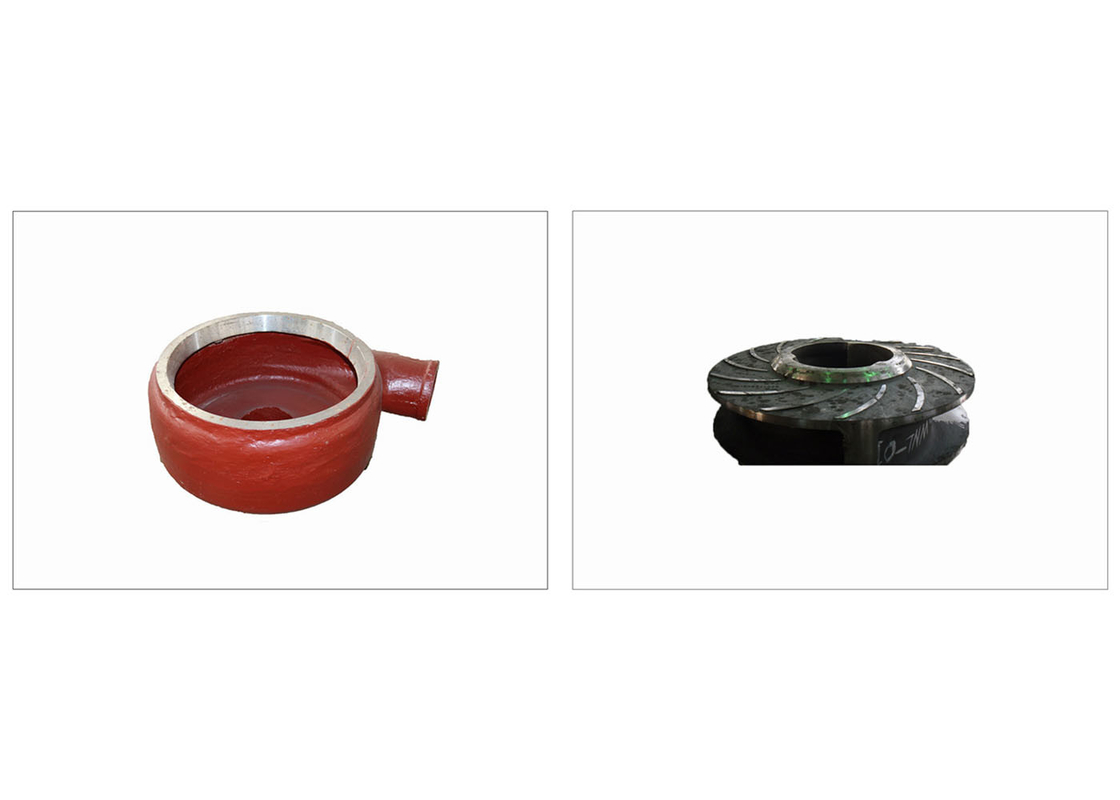

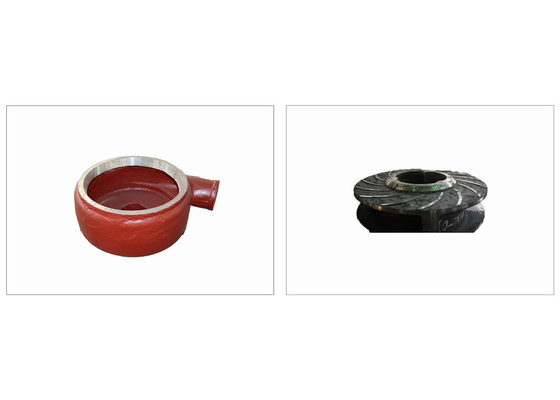

Impeller

The impeller generally has three vanes or five vanes and wide application range. It is made of wear-resistant high chromium alloy cast iron (hardness>58HRC, impact toughness>9j/cm2). The impeller is fixed on the pump shaft with double thread, and the thread tolerances are inspeed according to the pitch diameter of thread. Disassembly rings are installed at the rear of the shaft sleeve to make maintenance easy.

Pump casing

The pump casing is made of wear-resistant and compression-resistant alloy (hardness>56HRC, impact toughness>8 j/cm2). Advanced smelting guarantees smooth easting surfaces and reliable internal quality.

The bulge test will be carried out after molding, and the test pressure is 2 times of the discharge pressure of the pump. If there is no leakage after 20 minutes, strength and tightness pressure test reports can be issued.

Liner plate

The liner plates are made of wear-resistant high chromium alloy cast iron (hardness > 56HRC, impact toughness>8 j/cm2).

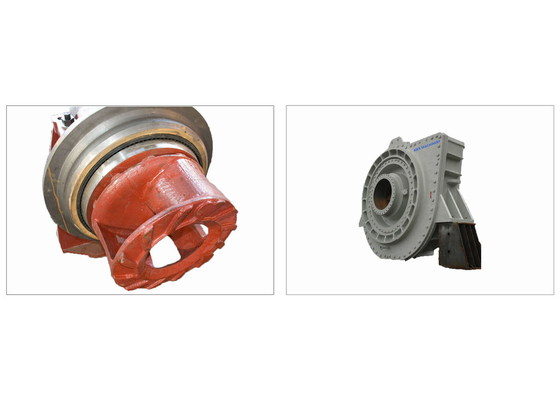

Suction mouth

The Suction mouth is the important part of the mud pump. It is made of wear-resistant high chromium alloy cast iron. (hardness>58HRC, impact toughness >9 j/cm2 )

Suction ring

The suction rings are made of wear-resistant high chromium alloy cast iron (hardness>56HRC, impact toughness>8 j/cm2).

Product Features:

1. Wear parts are constructed with chromium alloy; so pumps have better stability & longer service life.

2. Unique mechanical seal device can protect the electric motor and ensure high suction efficiency.

3. Additional agitation impeller is equipped to help break and mix the sludge.

4. Easy installation, operation and cost saving, since no extra vacuum pump or pump house is needed.

5. Professional technology support is provided during the whole process of the usage and maintenance.

OEM Service
Based on many years of rich experience in slurry pump manufacturing and design, we can undertake OEM customization for the whole set of pump and various spare parts. The slurry pump spare parts can be made of various material according to customer's requirement, Such as : Alloy 20, Hastelloy Alloy , A 61 and so on.
