| Max Particle Size: | 86mm | Pump Type: | 12/10ST- |
|---|---|---|---|
| Application: | Coal Mine, Ore Transfering | Input Size: | 12" |
| Output Size: | 10" | ODM: | Available |
| Pump Theory: | Centrifugal | Pump Drive Type: | Motor Or Engine |
| High Light: | Centrifugal Impeller Liner 12/10ST-,86mm Particle Centrifugal Impeller Liner,pump volute casing 12/10ST- |
||
Horizontal single-stage anti-wear coal mine 12/10ST- slurry pump impeller liner
Product Description

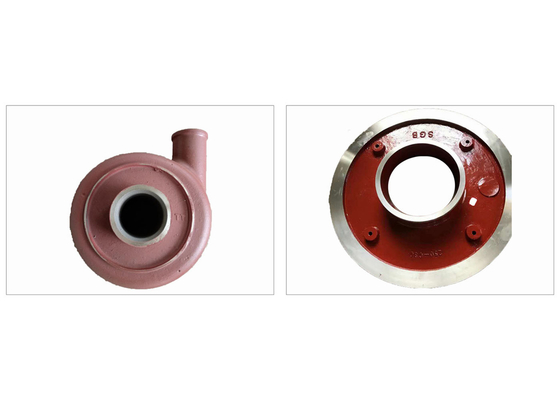

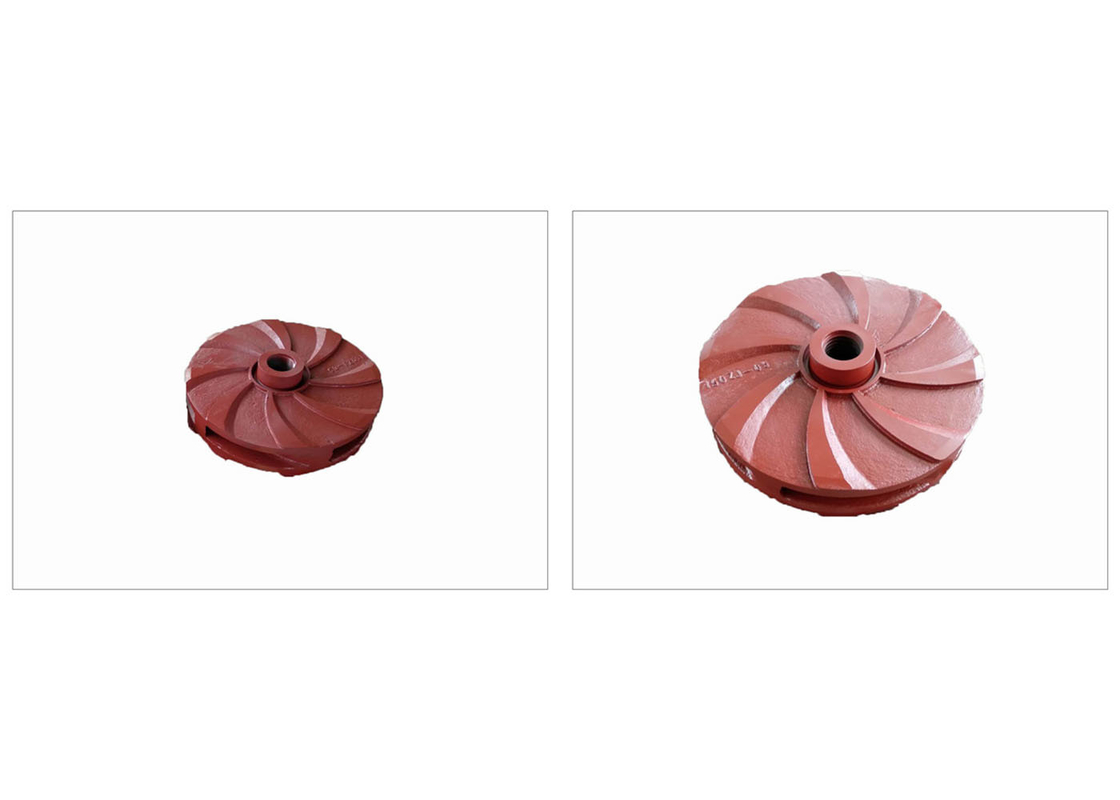

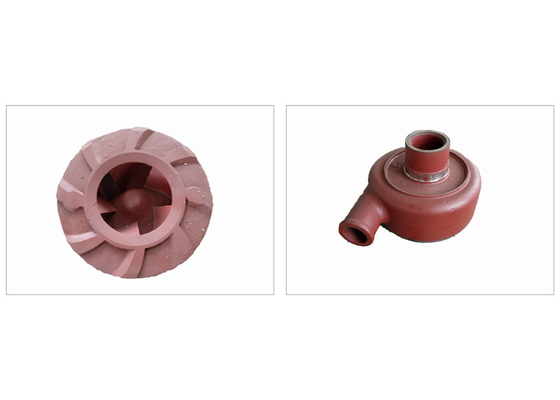

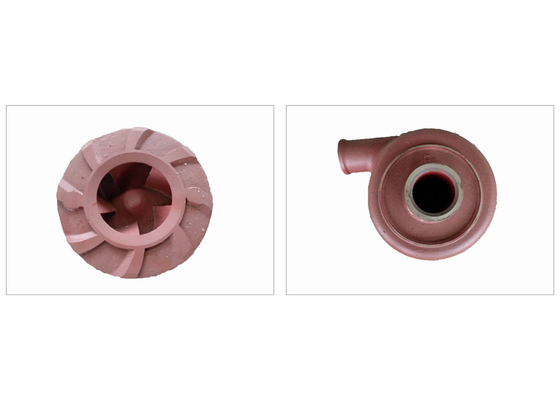

The impeller and volute liner are the important wet parts for transfering slurry. Our impeller and liner are interchangable with warman wet part. They are the replacements of warman standrad impeller and liner.
The material of impeller and liner is required abrasive-resistant. It is high chrome cast iron alloy, Cr26, Cr27, Cr28, A05, A07, A49.
Characteristics
| Inlet diameter size: | 12" |
| Outlet diameter size: | 10" |
| Number of blades: | 5 |
| Hardness : | HRC56-63 |
| Diameter of the impeller wheel: | 813 |
| Diameter of the impeller blades: | 762 |
| Pump thoery: | Centrifugal |
Technology
High chrome alloy material
| 1. A05 is a wear resistant white iron that offers excellent performance under erosive conditions.The high abrasive-resistance of A05 is supported by the presence of hard carbides within its micro-structure. Alloy A05 is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required. |
| 2. A07 Marten-sic white iron with moderate erosion resistance. |
| 3. A49 is usually apply in low pH corrosion duties, where erosive-resistance is also needed. The alloy is particularly suitable for Flue Gas Desulphu-rization(FGD) and other corrosive applications, pH less than 4. A49 has an erosion resistance similar to that of Ni-Hard |
Casting technology and heat treatment are important for parts wear life span:
Application
The material of the slurry pump impeller and liner is anti-abrasive. The slurry pump is use for ore slurry transfering in coal mining, gold mining, iron mining and copper mining. The impeller and volute liner is the replacement of warman 12/10ST- type slurry pump wet parts. ODM is also available in our factory. Our experts are able to make cast mould according drawings.
