| Material: | High Chrome Cast Iron Alloy | Pump Type: | ,G,series |
|---|---|---|---|
| Thoery: | Centrifugual | Application: | Mining, Tailing, Dredging, Power Plant |
| OEM: | Yes | ODM: | Yes |
| Pump Structure: | Single-stage | Drive Type: | Motor Or Engine |
| High Light: | OEM ODM dredge pump impeller Liner,Volute Liner Cr27 Cr28,Dredge Pump Impeller Cr27 Cr28 |
||

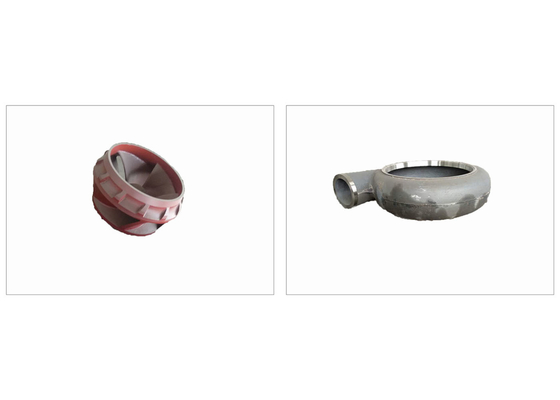

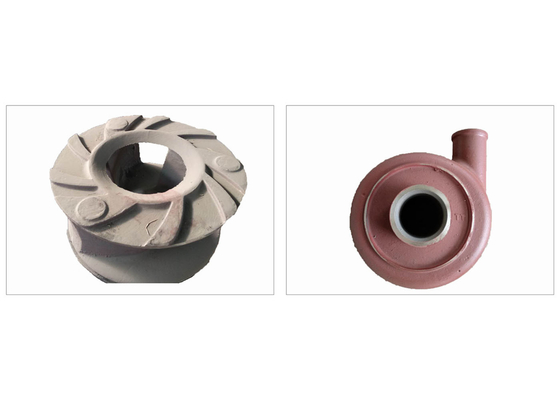

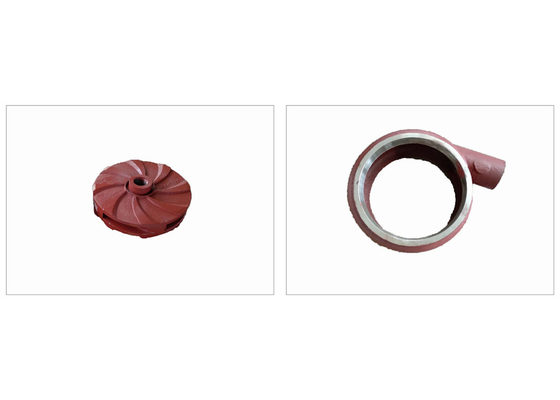

Wear resistant mining centrifugal horizontal slurry pump impeller liner
Product Description
Impeller is the important wet parts for mining slurry pump and sand gravel pumps. The material of impeller is high chrome cast iron alloy, wear-resistant. As pump impeller is the rotating part of the transflux parts, the marterial of it must be abrasive-resistant hard metal, such as Cr26,Cr27,Cr28,A05,A49.
The liner of slurry pump is also important transflux wet parts. The material of liner must be wear-resistant to transfering slurry.
. Characteristics
-Hard matal material, wear-resistant
-Hardness > HRC 56 (HRC56-63)
-Pump thoery: centrifugal
-Interchangable with most warman type slurry pump parts ,HH series and sand gravel pump parts G,GH series
-OEM and ODB available.
-Easy installation and replacement
Technology
High chrome alloy cast
| Part Name | Material | Specification | HRC | Application | OEM Code |
| Liners & Impeller | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| AB15: 14%-18% chrome white iron | ≥59 | Used for higher wear condition | A07 | ||
| AB29: 27%-29% chrome white iron | 43 | Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 | A49 | ||
| AB33: 33%-37% chrome white iron | It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. | A33 |
Application
Impeller and volute liner is widely usd as wet parts replacement of parts of pumps gold mining, copper mining, tailing, urban water supply and drainage, mine, metallurgy, coal, petrochemical, building material, thermal power FGD, river dredging, and other fields. ODM is also available.We can make the parts as the drawing that customer sends to us. Our experts in the foundry are able to make the cast mould according the drawing.
