OEM Acceptable Chrome Alloy Abrasion-Resistant Mining Slurry Pump Liner

Product Description

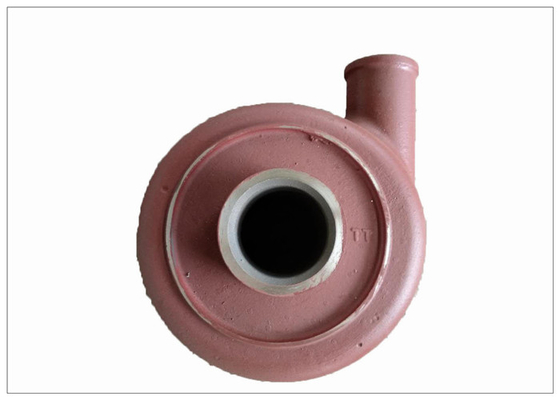

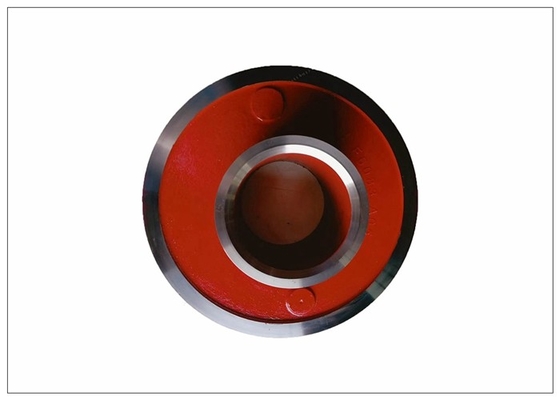

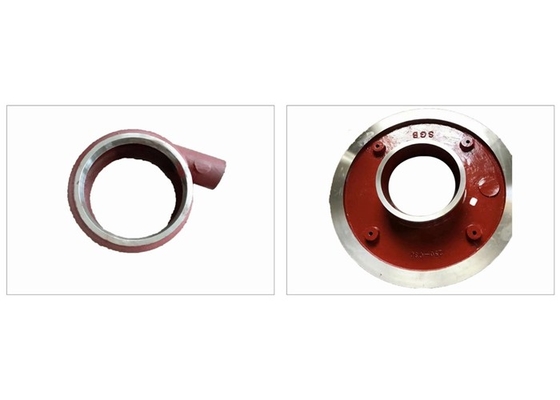

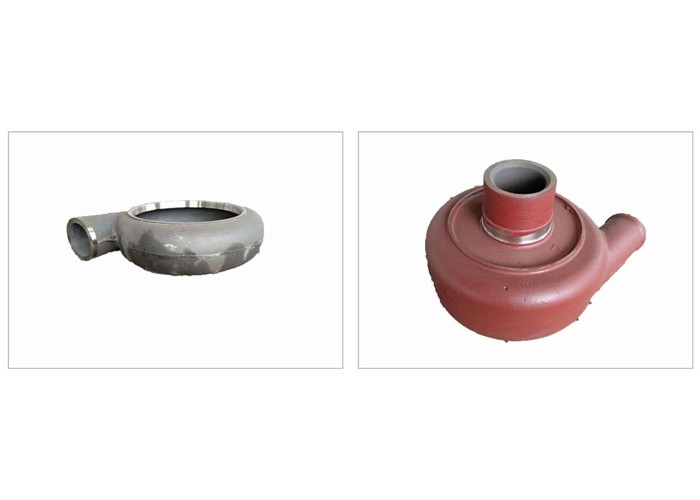

Pump liner is the important wet part of the pump. As the medium that the pump transfers contains ORE, sand and stones, the pump liner is also a a comsuable of the pump. The material of the pump liner is high chrome cast iron alloy, Cr26, Cr27, Cr28, which is anti-abrasive. OEM is acceptable. We make product as the drawing customer send to us.

Characteristics

Techology

Direct from manufacture

Working Principle

Under the action of centrifugal force, the liquid is thrown from the center of the impeller to the outer edge and obtains energy, leaving the outer edge of the impeller at high speed and entering the volute pump housing. In the volute pump casing, the liquid decelerates due to the gradual expansion of the flow channel, converts part of the kinetic energy into static pressure energy, and finally flows into the discharge pipe at a higher pressure and is sent to the required place. When the liquid flows from the center of the impeller to the outer edge, a certain vacuum is formed in the center of the impeller. Since the pressure above the liquid level of the storage tank is greater than the pressure at the inlet of the pump, the liquid is continuously pressed into the impeller

Application

The pump volute liner is widely used for Mining slurry pump , dredging pump, power plant desulphurization pump, copper mining pump, tailing , gold mining etc. ODM and OEM is available. Experts in our foundry are able to make casting mold according the drawing.
