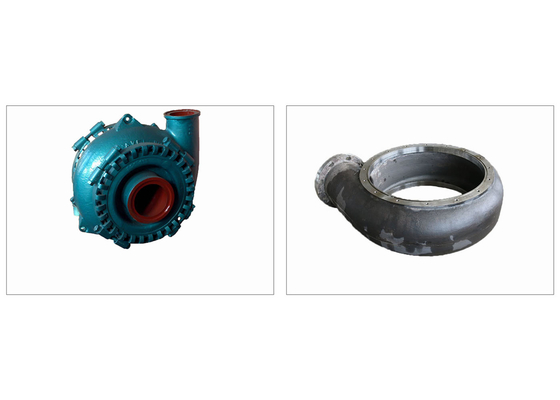

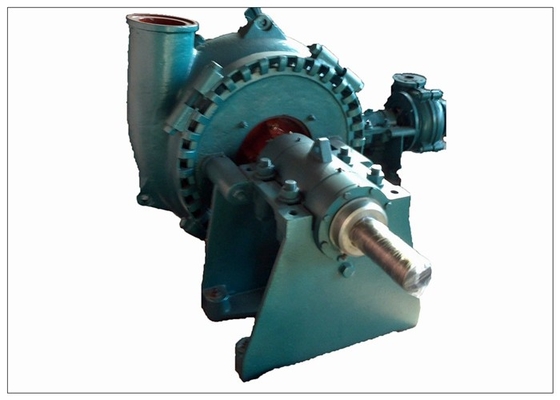

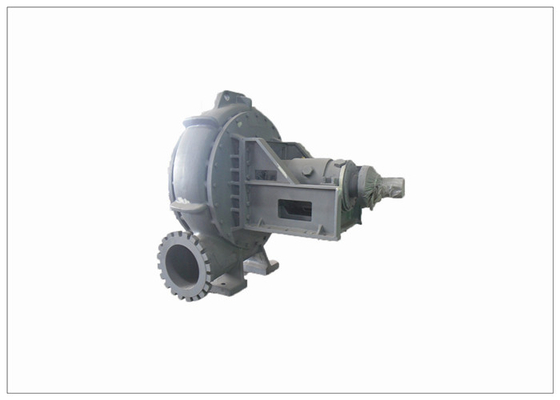

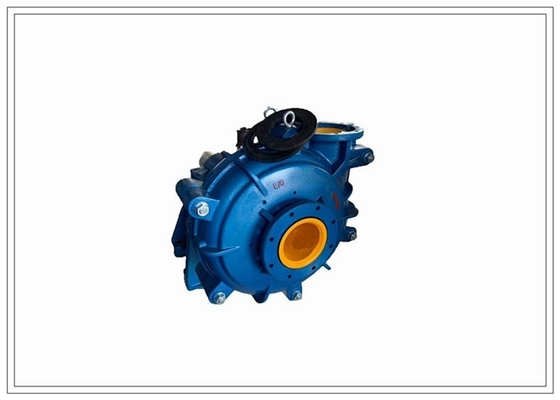

10 Inch Outlet Centrifugal Dredge Pump 12/10 GH Type Large Flow Capacity

10 Inch Outlet Centrifugal Dredge Pump 12/10 GH Type Large Flow Capacity

10 Inch Outlet Centrifugal Dredge Pump 12/10 GH Type Large Flow Capacity
10 Inch Outlet Centrifugal Dredge Pump 12/10 GH Type Large Flow Capacity 10 Inch Outlet Centrifugal Dredge Pump 12/10 GH Type Large Flow Capacity 10 Inch Outlet Centrifugal Dredge Pump 12/10 GH Type Large Flow Capacity 10 Inch Outlet Centrifugal Dredge Pump 12/10 GH Type Large Flow Capacity

Large Image :  10 Inch Outlet Centrifugal Dredge Pump 12/10 GH Type Large Flow Capacity

Product Details:
Place of Origin: China
Model Number: G
Payment & Shipping Terms:
Minimum Order Quantity: one
Packaging Details: Wooden Package
Delivery Time: 30-40days
Payment Terms: TT
Supply Ability: 100 per month
Detailed Product Description
Structure: Single-stage Pump Voltage: 380v Or Customized
Theory: Centrifugal Pump Material Of Parts: High Chrome Alloy, Natural Rubber
Transfering Material: Ore,Sand,Coal,Slag,Ash Slurry,etc. Customized Support: OEM, ODM
High Light:

Centrifugal Dredge Pump 12/10 GH Type

,

10 Inch Outlet Centrifugal Dredge Pump

,

12/10 GH centrifugal sand pump

12/10 Large Flow Capacity 10 Inch Outlet High Chrome Cast Iron Alloy Centrifugal Wear-Resistant Sand Gravel Pump

Introduction

1. Gravel Sand pump (dredge pump) is designed as single casing connected by means of clamp
bands and wide wet-passage.

2. The wearing parts are made of ultra chromium abrasion-resistance alloys, long service life
and very low failure rate.

3.The pumps are designed for continuously transferring strong corrosive big-solid -contained

slurry which the common slurry pump cannot transfer. They are widely used in dredging,
sand excavation; mining, explosive-sludge in metal melting, etc..

4. G series gravel pump is often installed on cutter suction dredger or barge.

5. Gravel pump outlet direction can be in any position of 360· This type of pump possesses
the advantages of easy installation and operation, good performance of NPSH and abrasion resistance.

6. The discharge direction of pump can be oriented in any direction of 360°



Type GH are high head pumps.

Clear Water Performance Chart
Model

Allowable

Max. Power

(kw)

Capacity Q

m3/h

Head

H (m)

Speed

n(r/min)

Max.Eff.

(%)

Impeller. Dia.

(mm)

6/4D-G 60 36-250 5-52 600-1400 58 378
8/6E-G 120 126-576 6-45 800-1400 60 378
10/8S-G 560 216-936 8-52 500-1000 65 533
10/8F-G 260 216-936 8-52 500-1000 65 533
10/8S-GH 560 180-1440 24-80 500-950 72 711
12/10F-G 260 360-1440 10-60 400-850 65 667
12/10G-G 600 360-1440 10-60 400-850 65 667
12/10G-GH 600 288-2808 16-80 350-700 73 950
14/12G-G 600 576-3024 8-70 300-700 68 864
16/14G-G 600 720-3600 18-44 300-500 70 1016
16/14TU-G 1200 324-3600 26-70 300-500 72 1270







Main Features

1.Single stage, single case, metal liner, horizontal anti-abrasion centrifugal pump.

2.Advanced hydraulic model, CAD-aided design, high efficiency and remarkable energy-saving effect.
3.Strong flow capacity. The pump can pump gravel, high plastic clay lumps and so on.
4.Strong matching capacity. The diesel engine and the motor are both available.
5.Stable running, small vibration and low noise.
6.The whole machine has high reliability and remarkable economic benefits.



Application:

G Series sand gravel pumps are designed to handle abrasive and large particles for gravel and dredging operations.
G sand gravel pumps are designed for the continuous handling of the most difficult higher abrasive slurries,
containing solids too large to be pumped by a standard slurry pump.Such as :
Suction Hopper Dredging / Cutter suction Dredger / Constructional Material / Sand gravel processing /
Sand washing /Desanders/ Barge Loading/ Sand Reclamation / Land reclamation / Island building
