Product Details:
Payment & Shipping Terms:
|
Voltage: | 440V 380V 220V, 380 | Usage: | Large Capacity Chemical Pump Sludge Dredging Pump |
---|---|---|---|
Application: | Gravel Ocean Sea Sand Transfer Pump | Material Of Parts: | High Chrome Alloy, Natural Rubber |
Transfering Material: | Ore,Sand,Coal,Slag,Ash Slurry,etc. | Customized Support: | OEM Or ODM |
High Light: | River Sea Dredging Sand Gravel Pump,Sand Gravel Pump 360 Degree,360 Degree gravel dredge pump |

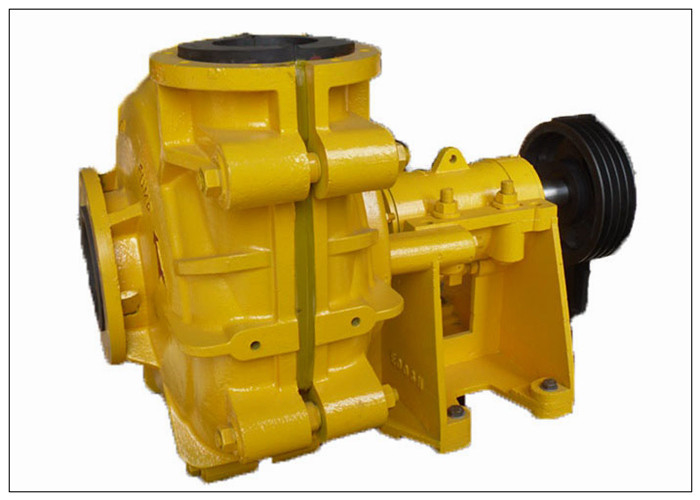

River And Sea Dredging OEM Available High Chrome Iron Cast Alloy Anti-Wear And Abrasive-Resistant Sand Gravel Pump
Sand Pump Overview
Type G(GH) gravel pumps are designed for continuously handling the most difficult high abrasive slurries which contain too big solids to be pumped by a common pump.They are suitable for delivering slurries in Mining, Explosive sludge in metal melting, Dredging in dredger and river course, and other fields.
Main Features
1.Single stage, single case, metal liner, horizontal anti-abrasion centrifugal pump.
2.Advanced hydraulic model, CAD-aided design, high efficiency and remarkable energy-saving effect.
3.Strong flow capacity. The pump can pump gravel, high plastic clay lumps and so on.
4.Strong matching capacity. The diesel engine and the motor are both available.
5.Stable running, small vibration and low noise.
6.The whole machine has high reliability and remarkable economic benefits.
Features
1) Horizontal, centrifugal, one stage, centrifugal gravel and slurry pump.
2) Made up of pump,bearing assembly,seal assembly,bracket and so on.
3) Wear resistant wet parts which is made of hard metal (Chrome alloy).
4) Long bearing life: The bearing assembly with large diameter shaft and short overhang.
5) Mechanical seal, expeller seal and packing seal
6) Pump discharge direction in any of 360 degree.easy installation
7) Wide passage , good performance of NPSH, anti-wearing and anti-corrosion, high efficiency
Application
1) To extract mud and sand for ships,river dredging and mining.
2) For long -distance transmission of big partical or strong corrosive materials
that general slurry pump can't transport.
