63mm Particle Horizontal Slurry Pump 8/6 Rubber Lined Slurry Pumps Anti Corrosion

high chrome anti-abrasive and anti-corrosion 8/6 mining slurry pump

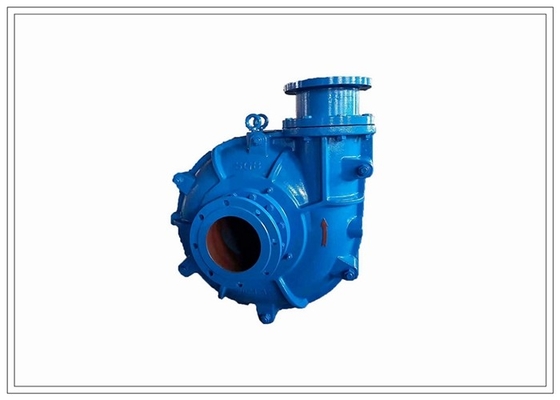

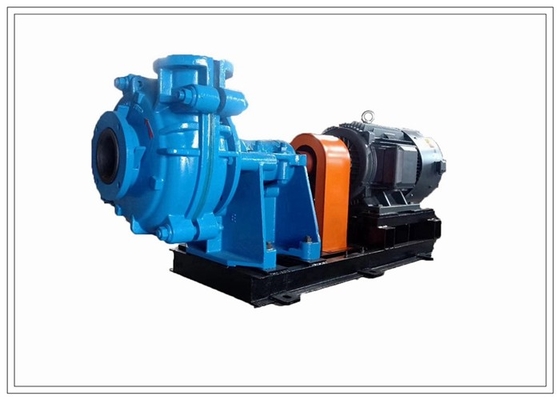

Slurry pump is horizontal centrifugal, cantilevered. They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power plant, building material and other industry department.

The wet parts, liner and impeller of (R) and M(R) model are easy changeable and material can be either anti-abrasive metal or corrosion-resistant rubber.Material of liner and impeller of HH model only can be metal version. Rubber material wet parts are mainly used for transport the slurry which contains fine, non-sharp particle size.

Specifications

Inlet diameter 8"

Diccharge diameter 6"

Capacity 360-828 m³/h

Head 10-61m

Maximum particle size  63mm

Features

- Liners easy replaceable.Hard metal liners are completely interchangeable with pressure moulded elastomer.

- Impeller , material is high chrome hard metal with long wear life.

- Bearing assembly, large diameter shaft, short overhang to minimize delflection.

- Pump casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
