| Model Number: | G | Product Name:: | Impeller Of Slurry Pump And Dredge Pump |
|---|---|---|---|
| Material:: | Anti-wear Alloy Cr27 Cr28 A05 A49 | Structure:: | Single-stage Pump |
| Advantage:: | Highly Anti-abrasive And Anti-corrosive | ||
| High Light: | SP Series Slurry Pump Impeller,Single Stage Dredge Pump Impeller,SP Series Dredge Pump Impeller |
||
Sand Suction Pump Parts Anti-Abrasive Long Life Hard Metal High Chrome Impeller
Centrifugal Pump parts

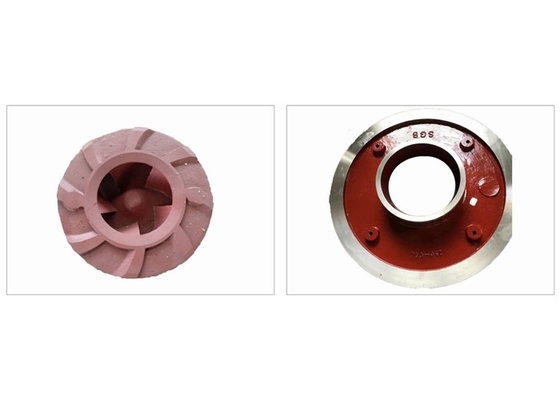

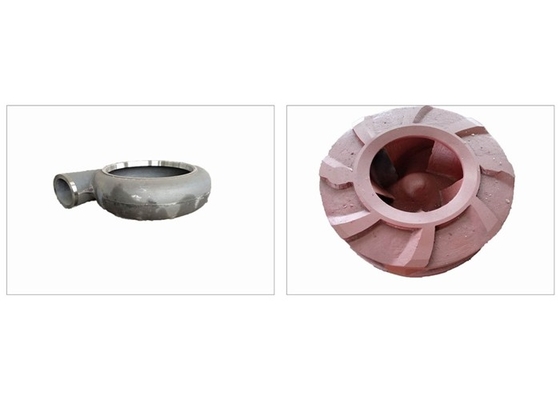

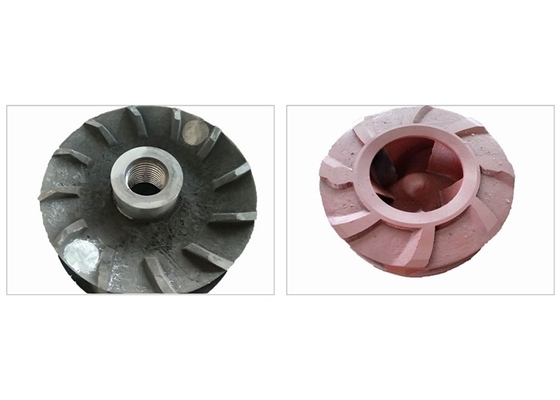

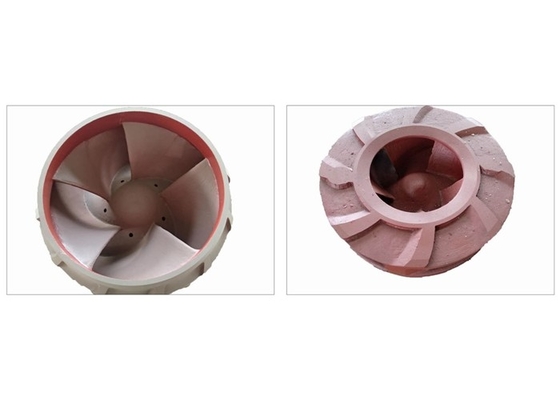

High chrome wear parts impellers, cover plate liners, frame plate liners, volute liners, throat bushes, frame plate liner inserts, cast iron parts, ductile iron pump casings, cover plates and frame plates, as well as bearing houses and bases.
SP Series Vertical Slurry Pump
40PV-SP Vertical Slurry Pump impeller code: SP4206
65QV-SP Vertical Slurry Pump impeller code: SP65206
100RV-SP Vertical Slurry Pump impeller code: SP10206
150SV-SP Vertical Slurry Pump impeller code: SP15206
200SV-SP Vertical Slurry Pump impeller code: SP20206
G Series Sand Gravel Pump
6/4D-G Sand Gravel Pump impeller code: DG4137
8/6E-G Sand Gravel Pump impeller code: EG6137
10/8F-G Sand Gravel Pump impeller code: FG8137
12/10G-G Sand Gravel Pump impeller code: FG10137
14/12G-G Sand Gravel Pump impeller code: GG12137
| material | Code | Specification | HRC | Pump spare parts | Application |
| Hard metal | A05 | High chrome white iron, Cr 25~30% | ≥56 | Impeller / Liner | Used for higher wear condition with PH between 6 to 12. Such as slurry pump, Dredging pump. Widely used in mine, coal, power plant, dredging, steel, building material. |
| A07 | High chrome white iron, Cr / Mo alloy. | ≥59 | Impeller / Liner | Used for higher wear condition with PH between 6 to 12. Such as slurry pump high abrasive. Widely used in mine, coal. | |
| A49 | High chrome, Anti-corrosive Cr/Mo/Ni alloy |
≥42 | Impeller / Liner | Used for FGD(Gypsum slurry circulating)and other corrosive application. | |
| A33 | High chrome, wear resistant Anti-corrosive Cr,/ Mo/ Ni alloy |
≥36 | Impeller / Liner | Used for Phosphorus chemical industry, Phosphorus gypsum slurry. |
