| Max Particle Size: | 63mm | Pump Type: | 8/6E- |
|---|---|---|---|
| Blades Of Impeller: | 5 | Application: | Gold Mining,Iron Ore Transfering, Tailing |
| Input Size: | 8" | Output Size: | 6" |
| ODM: | Available | Pump Structure: | Single-stage Horizontal |
| High Light: | 8/6E- Slurry Pump Impeller,Slurry Pump Impeller Liner 5 Blades,Pump Impeller Liner 5 Blades |
||

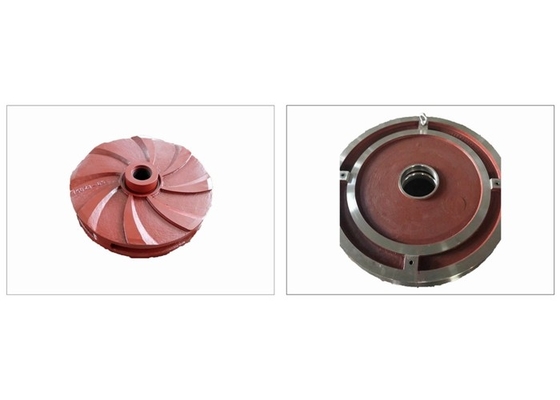

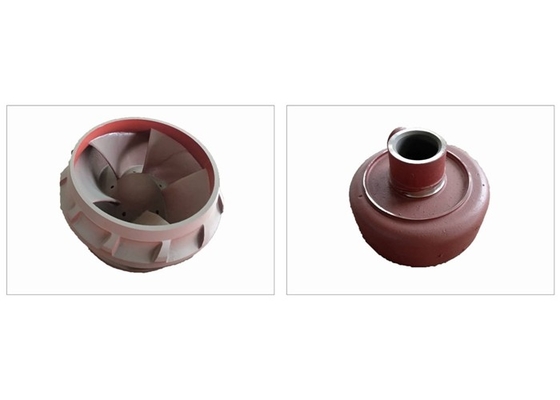

Horizontal centrifugal abrasive-resistant high chrome alloy 8/6E- slurry pump impeller liner
Product Description

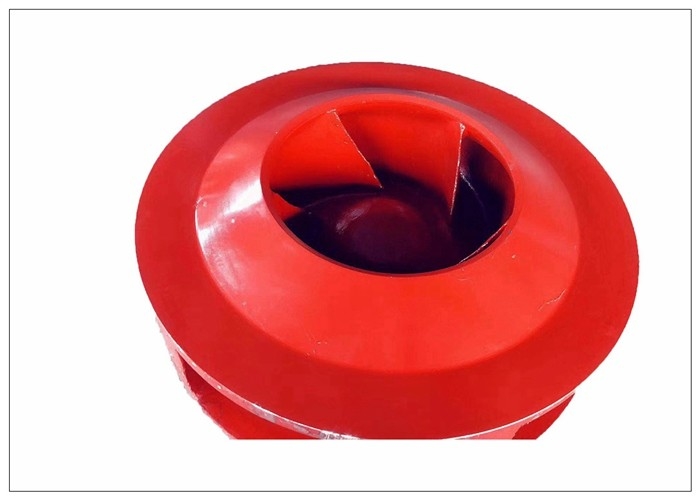

Impeller: - The rotating wet part of slurry pump
- Material is required abrasive-resistant
- Material options: high chrome alloy, A05,A07,A49

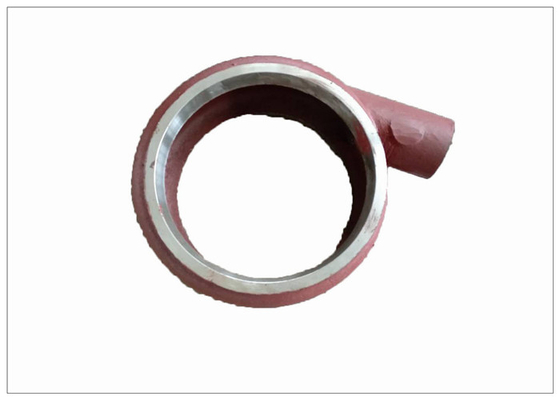

Liner: - The wet part forms the channel transfering the slurry.
- The liner is inside the pump case
- Material is required abrasive-resistant
- Material options: high chrome alloy, A05,A07,A49
Characteristics
| -Pump input diameter size: 6" |
| -Pump output diameter size:4" |
| -Number of impeller blades: 5 |
| -Hardness (HRC56-63) |
| -Diameter of the impeller wheel: 559mm |
| -Diameter of the impeller blades: 510mm |
| -Pump thoery: Centrifugal |
Technology
High chrome alloy material
| 1. A05 is a wear resistant white iron that offers excellent performance under erosive conditions.The high abrasive-resistance of A05 is supported by the presence of hard carbides within its micro-structure. Alloy A05 is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required. |
| 2. A07 Marten-sic white iron with moderate erosion resistance. |
| 3. A49 is usually apply in low pH corrosion duties, where erosive-resistance is also needed. The alloy is particularly suitable for Flue Gas Desulphu-rization(FGD) and other corrosive applications, pH less than 4. A49 has an erosion resistance similar to that of Ni-Hard |
Application
Impeller and volute liner is warman type 8/6E- slurry pump wet parts replacement. 8/6E- slurry pump is widely applied in iron ore, chemical fertilizer, coal mining, tailing, powe plant FDG, gold mine, copper mine, and etc. The material high chrome alloy Cr27,Cr28,A05,A07,A49 is suitable for wear-resistance and erosion resistance working conditions.
Slurry pump parts ODM is also available.We can make the parts as the drawing that customer sends to us. Our experts in the foundry are able to make the cast mould according the drawing.
