| Material: | High Chrome Cast Iron Alloy | Pump Type: | SP,SPR |
|---|---|---|---|
| High Light: | Vertical Slurry Pump SP SPR Type,Mining High Chrome sp slurry pump,SP SPR vertical spindle slurry pump |
||

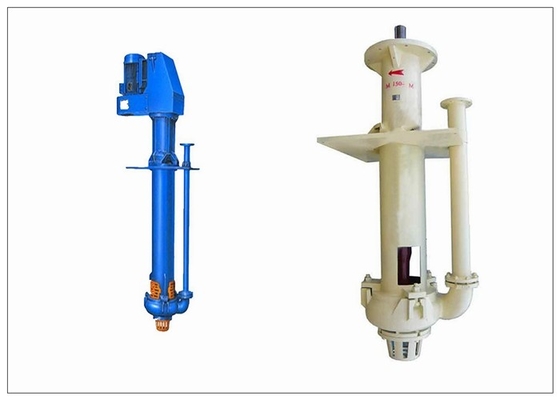

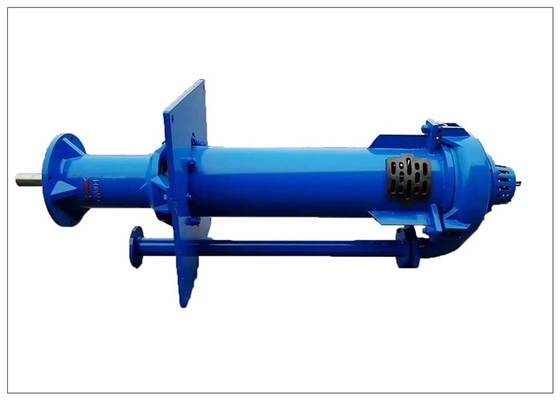

high chrome long life anti-abrasive vertical mining slurry pump
APPLICATION:
Sump drainage or washdown
Floor drainage
Mill sump
Carbon transfer
Monitoring
Magnetite mixing
Vertical mining slurry pump are vertical centrifugal slurry pump, submerged for transfer abrasive, coarse particles and high density slurry. When working, it needs no seal water or any kind of seal. It can work well as well when suction volume is not enough.
Model
40PV-SP (Or SPR)
40-Diameter of pump outlet (mm)
PV- Tray
SP-Submerged slurry pump
SPR-Submerged slurry pump lined with Rubber
The Features:
1. Vertical single-stage centrifugal pump
2. Flow-passage parts: High chrome alloy lined or elastomer rubber lined
3. High efficiency
4. Easy maintenance
Application:
- Widely used for building materials.
- Widely used for metallurgy.
- Widely used for mining.
- Widely used for coal.
|
Models
|
Outlet DN
(mm)
|
Capacity
(m3/h)
|
Head
(m)
|
Speed
(r/min)
|
Max Power
(KW)
|
Max Solid
(mm)
|
|
40PV-SP
|
40
|
19 ~40
|
4.5~25
|
1000~2200
|
15
|
12
|
|
65QV-SP
|
65
|
36~108
|
5~29
|
700~1500
|
30
|
15
|
|
100RV-SP
|
100
|
54~289
|
5~35
|
500~1200
|
75
|
32
|
|
150SV-SP
|
150
|
108~479
|
8.5~32
|
500~1000
|
110
|
45
|
|
200SV-SP
|
200
|
189~750
|
6.5~37
|
1000~2200
|
110
|
65
|
