| Theory: | Centrifugal Single Stage | Package: | Wooden Box |
|---|---|---|---|
| Type:: | Closed | Medium: | Ore,Sand,Mud,Coal,Slag,Ash Slurry |
| Material:: | High Chrome Iron Cast Anti-wear Alloy | Usage:: | Sand Gravel Suction,slurry, Sand Pumps |
| High Light: | OEM ODM High Chrome Impeller,6/4D-G Sand Gravel Pump Impeller,6/4D-G Pump High Chrome Impeller |
||

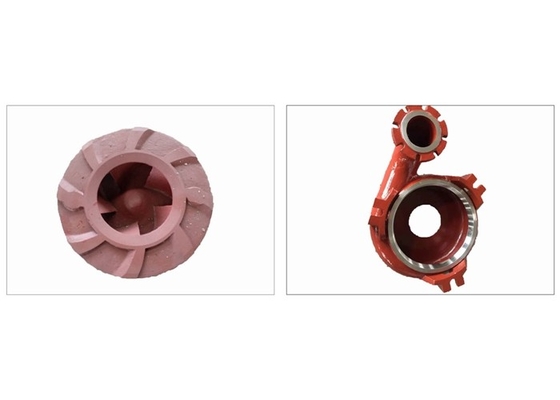

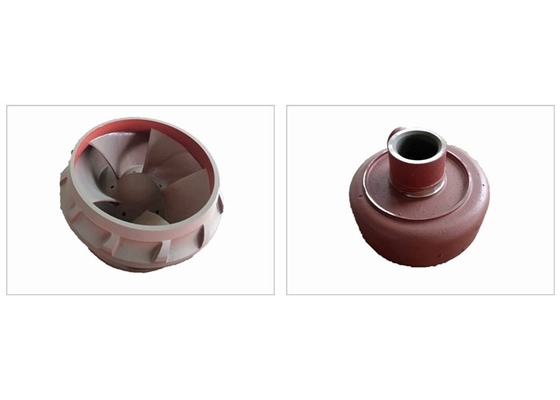

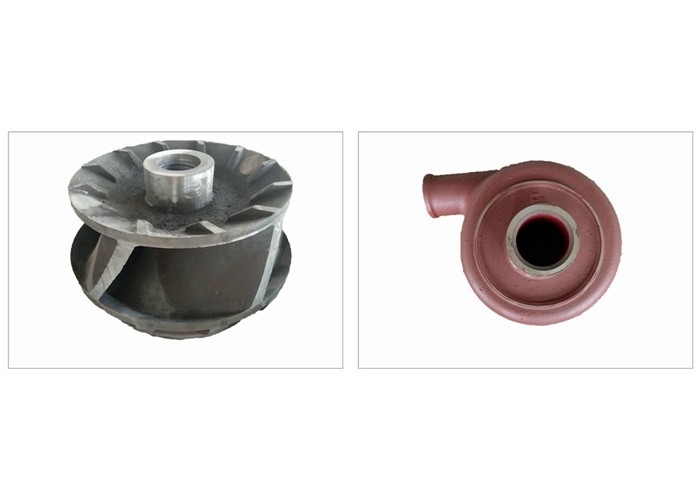

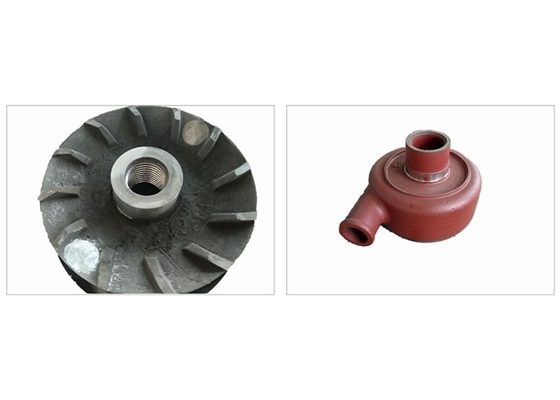

OEM Slurry Pump Parts And Sand Gravel Pump Parts A05, A07, A49 Meterial High Chrome Impeller
OEM Slurry Pump Impeller interchangeable with SP Series Vertical Slurry Pump
40PV-SP Vertical Slurry Pump impeller code: SP4206
65QV-SP Vertical Slurry Pump impeller code: SP65206
100RV-SP Vertical Slurry Pump impeller code: SP10206
150SV-SP Vertical Slurry Pump impeller code: SP15206
200SV-SP Vertical Slurry Pump impeller code: SP20206
OEM Gravel Pump Impeller interchangeable with G Series Sand Gravel Pump
6/4D-G Sand Gravel Pump impeller code: DG4137
8/6E-G Sand Gravel Pump impeller code: EG6137
10/8F-G Sand Gravel Pump impeller code: FG8137
12/10G-G Sand Gravel Pump impeller code: FG10137
14/12G-G Sand Gravel Pump impeller code: GG12137
| material | Code | Specification | HRC | Pump spare parts | Application |
| Hard metal | A05 | High chrome white iron, Cr 25~30% | ≥56 | Impeller / Liner | Used for higher wear condition with PH between 6 to 12. Such as slurry pump, Dredging pump. Widely used in mine, coal, power plant, dredging, steel, building material. |
| A07 | High chrome white iron, Cr / Mo alloy. | ≥59 | Impeller / Liner | Used for higher wear condition with PH between 6 to 12. Such as slurry pump high abrasive. Widely used in mine, coal. | |
| A49 | High chrome, Anti-corrosive Cr/Mo/Ni alloy |
≥42 | Impeller / Liner | Used for FGD(Gypsum slurry circulating)and other corrosive application. | |
| A33 | High chrome, wear resistant Anti-corrosive Cr,/ Mo/ Ni alloy |
≥36 | Impeller / Liner | Used for Phosphorus chemical industry, Phosphorus gypsum slurry. | |
| Rubber | R26 | Standard liner rubber. | ≥43HA | Liner | Have good wear resistance and erosion resistance. Used for pump liner. Maximum particle size ≤10mm. Widely used in slurry pump liner and FGD pump liner. |
| R08 | Standard impeller rubber. | ≥55HA | Impeller | Have good wear resistance and erosion resistance. Used for pump impeller. Widely used in slurry pump impeller. Vertical pump parts. | |
| Natural rubber | ≥46HA | Impeller / Liner | Have cut resistance, sharp slurries. Widely used in slurry pump parts. |
