| Material: | A05, A07, A49,high Chrome Cast Iron,Cr26,Cr27,Cr28 | Pump Type: | Sand Gravel Dredge Pump |
|---|---|---|---|
| Application: | Dredging, Sand And Gravel Suction | Input Size: | 12 Inch |
| Output Size: | 10 Inch | Head: | 5-95 Meters |
| Thoery: | Centrifugal | Flow Capacity: | 300-1500m³/h |
| High Light: | Anti Wear Cr26 Volute Liner,12/10G-G centrifugal pump volute,Pump Volute Liner 12/10G-G |
||

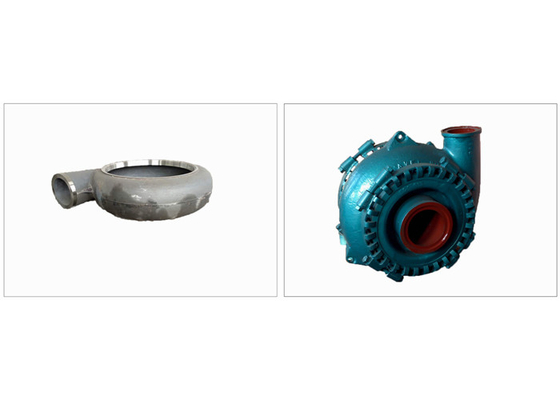

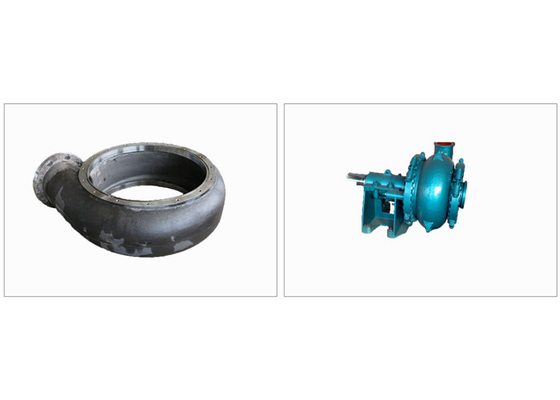

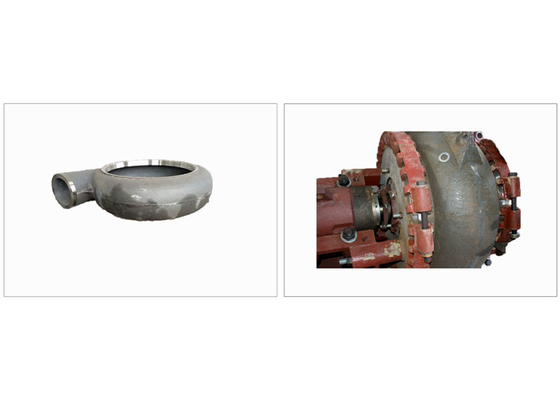

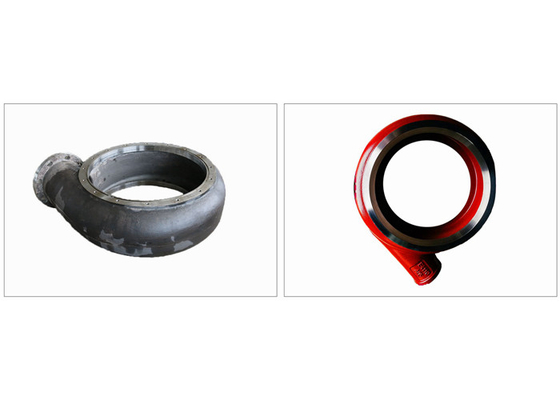

12/10G-G Anti-Wear High Chrome Cast Iron Long Life Span Sand Dredge Pump Volute Case
Product Description
12/10G-G pump is sand suction pump that used in dredge industry. The maximum size of the particles that can pass the pump is 220 mm. The volute case is the impotant wet part of the pump and the mateial is highly anit wear. The pump case is made of hard metal, high chrome cast iron, which is abrasion-resistant.
Characteristics
| Material: | Cr26,Cr27,Cr28 high chrome cast iron |
| Hardness: | HRC 56-63 |
| Long life: | Abrasion-resistant |
| Input size: | 12 inch |
| Output size: | 10 inch |
| Pump structure: | Single stage |
| Pump thoery: | Centrifugal |
Techology
The material of slurry pump case high chrome cast iron.
Application
12/10G-G pump is mostly used in sand and gravel dredge or iron sand trasfering in the yard.
