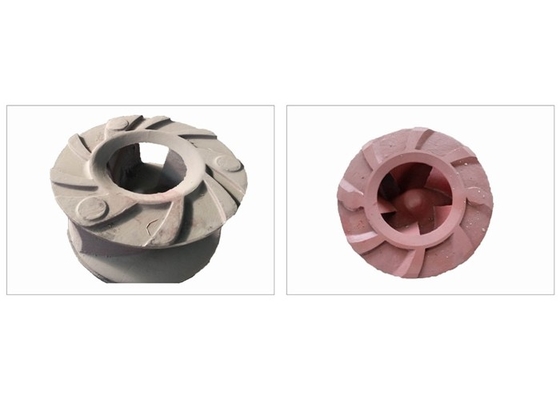

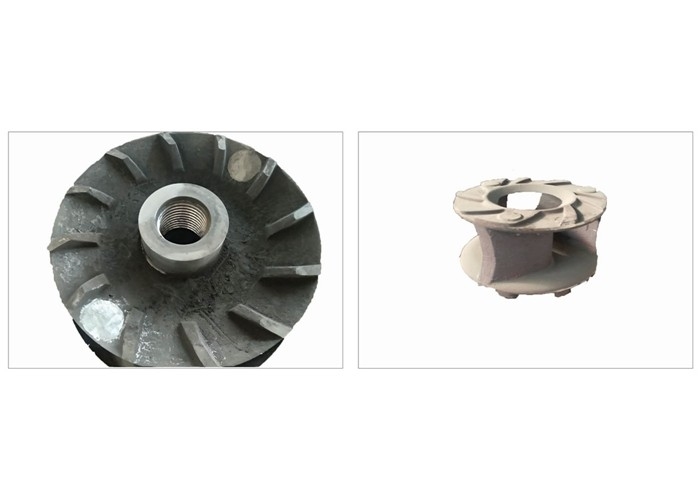

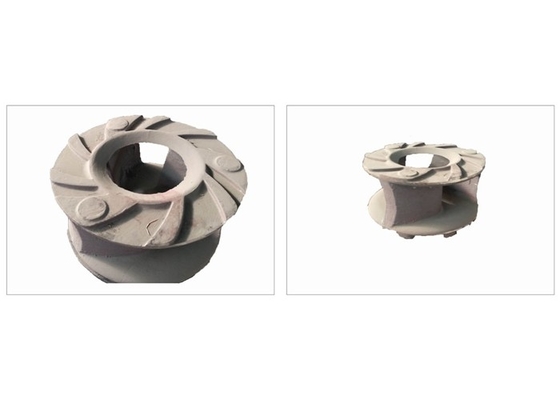

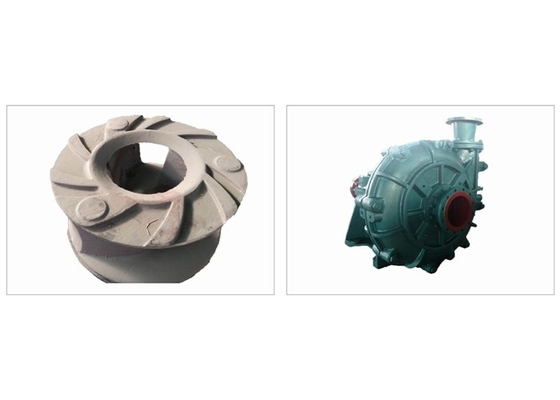

Horizontal 6/4 Slurry Pump Closed Impeller A05 A07 Anti Abrasive

Horizontal 6/4 Slurry Pump Closed Impeller A05 A07 Anti Abrasive

Horizontal 6/4 Slurry Pump Closed Impeller A05 A07 Anti Abrasive
Horizontal 6/4 Slurry Pump Closed Impeller A05 A07 Anti Abrasive Horizontal 6/4 Slurry Pump Closed Impeller A05 A07 Anti Abrasive Horizontal 6/4 Slurry Pump Closed Impeller A05 A07 Anti Abrasive Horizontal 6/4 Slurry Pump Closed Impeller A05 A07 Anti Abrasive

Large Image :  Horizontal 6/4 Slurry Pump Closed Impeller A05 A07 Anti Abrasive

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: one
Packaging Details: Wooden Package
Delivery Time: 30-40days
Payment Terms: TT
Supply Ability: 100 per month
Detailed Product Description
Model Number: G, Theory: Centrifugal
Package: Wooden Box Material:: High Chrome Cast Iron A05 A49
Structure:: Horizontal Single-stage Pump Usage:: Sand Gravel Suction, Slurry, Sand Pumps
High Light:

6/4 Slurry Pump Closed Impeller

,

Slurry Pump Closed Impeller A05 A07

,

Horizontal 6/4 Slurry Pump Impeller

6/4 sand gravel pump high chrome cast anti-wear sand mud transferring dredge pump impeller





Product Overview

We supply all kinds of slurry pump wet parts with excellent quality in competitive price.

These parts are all standard parts, can fit to the slurry pumps perfectly.

We supply metal and rubber parts for slurry pump series(NH(R), HH, SP(R), G, TL, L, ZJ, M models).

various kind of centrifugal pump spare parts , such as Slurry Pump Rubber/metal Impeller,

Metal/ Natural rubber liners, Expeller, etc.Completely interchangeable with slurry pumps and gravel pumps.For unlisted slurry pump parts, OEM service offered. Drawings needed.



OEM Slurry Pump Impeller interchangeable with Slurry Pump Code

1.5/1B- Slurry Pump code: B1127
2/1.5 B- Slurry Pump code: B15127
3/2 C- Slurry Pump code: C2147
4/3 C- Slurry Pump code: D3147
4/3 D- Slurry Pump code: D3147
6/4 D- Slurry Pump code: E4147
6/4 E- Slurry Pump code: E4147
8/6 E- Slurry Pump code: F6147
8/6 F- Slurry Pump code: F6147
10/8 F- Slurry Pump code: F8147
10/8 ST- Slurry Pump code: G8147
12/10 ST- Slurry Pump code: G10147
14/12 ST- Slurry Pump code: G12147



OEM Gravel Pump Impeller interchangeable with G Series Sand Gravel Pump

6/4D-G Sand Gravel Pump impeller code: DG4137
8/6E-G Sand Gravel Pump impeller code: EG6137
10/8F-G Sand Gravel Pump impeller code: FG8137
12/10G-G Sand Gravel Pump impeller code: FG10137
14/12G-G Sand Gravel Pump impeller code: GG12137



Materials of Construction

1. A05 is a wear resistant white iron that offers excellent performance under erosive conditions. The alloy can be effectively used in a wide range of slurry types. The high wear resistance of alloy A05 is provided by the presence of hard carbides within its micro-structure. Alloy A05 is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required.

2. A07 Marten-sic white iron with moderate erosion resistance.

3. A49 is suitable for low pH corrosion duties, where erosive wear is also a problem. The alloy is particularly suitable for Flue Gas Desulphu-rization(FGD) and other corrosive applications, where the pH is less than . The alloy can also be used in other mildly acidic environments.A49 has an erosion resistance similar to that of Ni-Hard 1.



material Code Specification HRC Pump spare parts Application
Hard metal A05 High chrome white iron, Cr 25~30% ≥56 Impeller / Liner Used for higher wear condition with PH between 6 to 12. Such as slurry pump, Dredging pump. Widely used in mine, coal, power plant, dredging, steel, building material.
A07 High chrome white iron, Cr / Mo alloy. ≥59 Impeller / Liner Used for higher wear condition with PH between 6 to 12. Such as slurry pump high abrasive. Widely used in mine, coal.
A49 High chrome,
Anti-corrosive Cr/Mo/Ni alloy
≥42 Impeller / Liner Used for FGD(Gypsum slurry circulating)and other corrosive application.
A33 High chrome, wear resistant
Anti-corrosive Cr,/ Mo/ Ni alloy
≥36 Impeller / Liner Used for Phosphorus chemical industry, Phosphorus gypsum slurry.
