| Spare Parts: | Impeller, Cover Plate Liner, Frame Plate Liner, Packing | Theory: | Centrifugal-single Stage |
|---|---|---|---|
| Structure: | Single-stage Pump, Centrifugal | OEM: | Availiable |
| Color: | As Customized | Power Source: | Power Source |
| Material:: | Anti-wear Alloy, High Chrome Cast Iron Alloy | Application: | Mining, Dredging Pump Impeller |
| Flow Rate: | 31 - 200 L/M | Impeller: | Natural Rubber Or High-chrome Alloy Closed Impeller |
| High Light: | Single Stage Cast Iron Pump Parts,200L/M Cast Iron Pump Parts,200L/M sand pump spares |
||

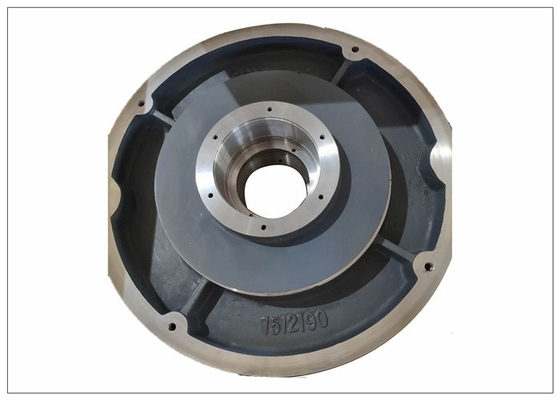

Centrifugal Large Capacity Iron Mining Pump Hard Metal Anti-Wear High Chrome Cast Iron Pump Parts
Slurry Pump Main parts:

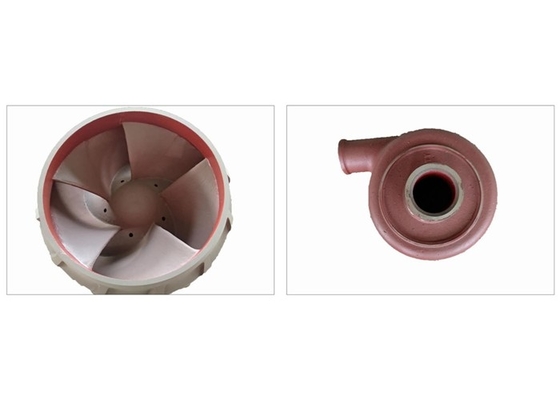

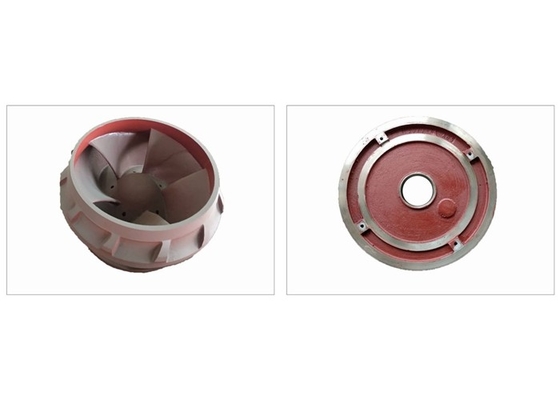

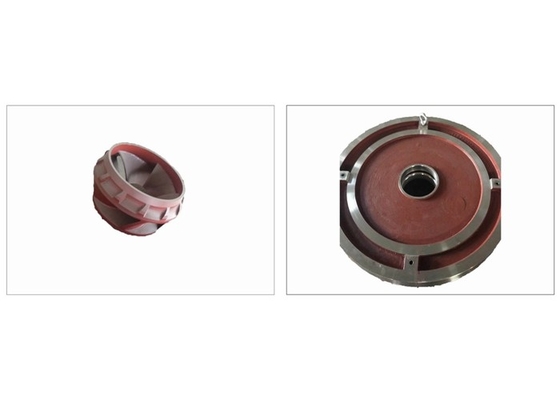

• Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
Hard metal and molded rubber impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
• Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of
maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
• Throat Bush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow
The Features:
1. The wet parts for slurry pump are made of wear-resistant chromium alloy.
2. Slurry pump's bearing assembly use cylindrical structure,adjusting the space between impeller andfront liner easily, they can be removed completely when being repaired. Bearing assembly use grease lubrication.
3. The shaft seal could use the packing seal, expeller seal and mechanical seal.
4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, frequency conversion drive devices for the slurry pump.
| Rubber Pumps Material | Metal Pumps Material | ||||
| No | Part | Material | No | Part | Material |
| 1 | Base | Cast Iron | 1 | Base | Cast Iron |
| 2 | Shaft | 4140 High Tensile Steel* | 2 | Shaft | 4140 High Tensile Steel* |
| 3 | Bearing Assembly | Timken (Cast Iron Body) | 3 | Bearing Assembly | Timken (Cast Iron Body) |
| 4 | Shaft Sleeve | 420 Stainless Steel | 4 | Shaft Sleeve | 420 Stainless Steel |
| 5 | Pump Casing | Cast Iron | 5 | Pump Casing | Cast Iron |
| 6 | Frame Plate Liner Insert | Rubber | 6 | Frame Plate Liner | 27% Chrome White Iron |
| 7 | Cover Plate Liner | Rubber | 7 | Volute Liner | 27% Chrome White Iron |
| 8 | Impeller | Rubber Coated High Tensile Steel | 8 | Impeller | 27% Chrome White Iron |
| 9 | Throat Bush | Rubber | 9 | Throat Bush | 27% Chrome White Iron |
| 10 | Cover Plate | Cast Iron | 10 | Joint Rings | Rubber |
| 11 | Stuffing Box | Cast Iron | 11 | Cover Plate | Cast Iron |
| 12 | Expeller | 27% Chrome White Iron | 12 | Stuffing Box | Cast Iron |
| 13 | Expeller Ring | Natural Rubber | 13 | Expeller | 27% Chrome White Iron |
Application range
Concentrating/metallurgical plant: it deliveries a variety of slurries.
Sand plant: it feeds water and mineral sands to all kinds of classifying and dehydrating equipments.
Coal preparation plant: it deliveries coal pulps; it also classifies, screens and conveys materials of heavy medium.
Ceramic and glass plant: it is used to convey porcelain clay and sands, feed hydraulic cyclone, and dispose effluent.
Steel plant: it conveys slurry, rust and corrosive liquid.
Please specify it to us if the pump is applied to places where oil or chemical stuffs are present.
