| Theory: | Centrifugal-single Stage | Usage: | Large Capacity Chemical Pump Sludge Dredging Pump |
|---|---|---|---|
| Pressure: | High Pressure | Application: | Gravel Ocean Sea Sand Transfer Pump |
| Drive Type: | V-belt,,Elastic Coupling, Gear Reducer,Fluid Coupling | Material Of Parts: | High Chrome Alloy, Natural Rubber |
| High Light: | A05 A49 Sand Dredge Pump,360 Degree Sand Dredge Pump,A05 A49 horizontal sand pump |
||

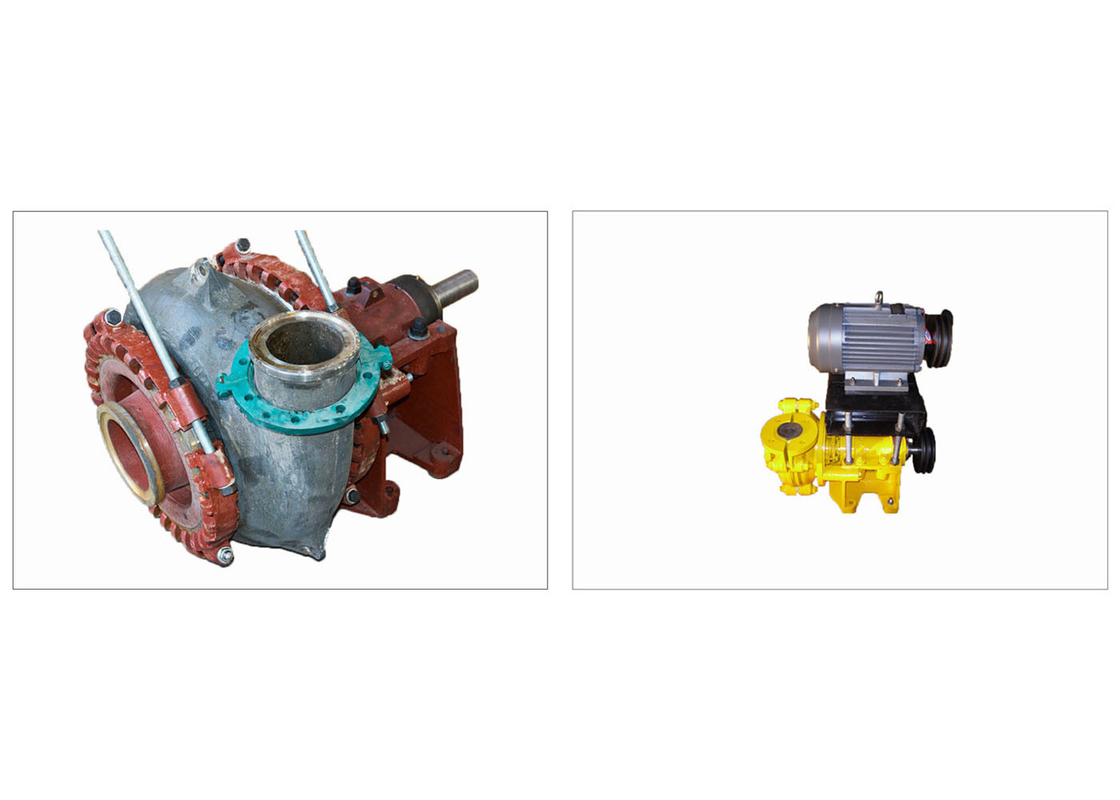

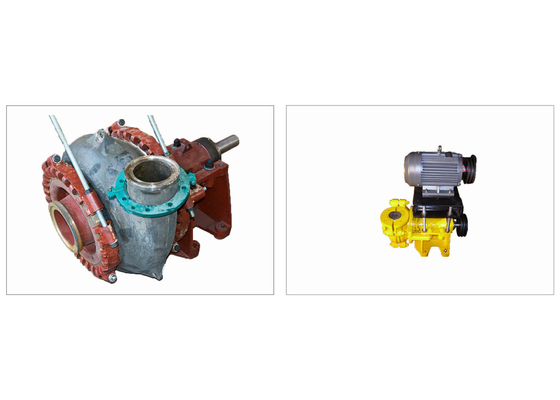

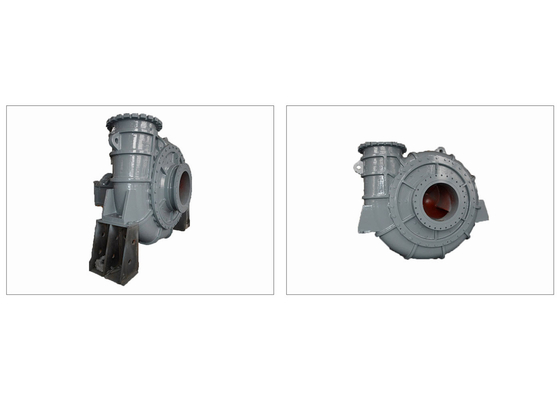

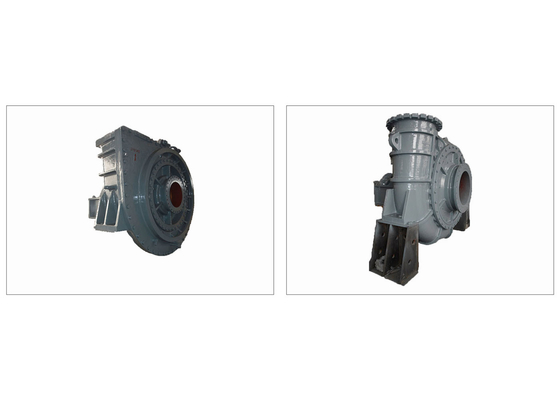

Large Flow Rate Gravel Mud Dredging Centrifugal A05, A49 Material Sand Dredge Pump
Construction of Gravel Pump:
Construction of Gravel Pump is of single casing connected by means of clamp bands and wide wet passage. The wet parts are made of Ni hard and high chromium abrasion-resistance alloys. The discharge direction of punp can be oriented in any direction of 360 degree. This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion resistance.
G Sand gravel Pump Features:
1. Easy to Disassembly and Installation, Convenient Maintenance
2. Good Performance on NPSH
3. Good Wear-resistant Performance, Long Service Time of Wet Parts:
4. Reliable Shaft Sealing Without Leakage.
Sand Gravel Pump Parts Material:
| NO. | VOLUTE | IMPELLERS | BASE | EXPELLER | EXPELLER RING | SHAFT SLEEVE | SEALS |
| Standard | High Chrome Alloy | High Chrome Alloy | Cast Iron | Chrome Alloy or SG Iron |
Chrome Alloy or SG Iron |
SG Iron | Natural Rubber |
| Options | SG Iron | SG Iron | Mild Steel Fabricated |
SG Iron | SG Iron | EN56C Ferralium Hasteloy C Ceramic Stellite Chrome Oxide |
Nordel Neoprene Viton Butyl EPDM |
The advantage of G sand /gravel pumps
| 1 | Large drdging depth, high density of dredging mud, good NPSH and stronger suction lift ability |
| 2 | Strong through-put. The pump can persistently discharge gravel, high plastic soil lump and so on |
| 3 | The pump can be directly matched with either motor or diesel engine |
| 4 | Wide application. It can be used in various kinds of soil quality. |
| 5 | Little hydraulic loss, high efficiency and low oil-consumption |
| 6 | Little volume, light weight |
| 7 | Steady operating, little vibration, low noise |
