| Place Of Origin: | Hebei, China | Max.Capacity: | >400 L/min |
|---|---|---|---|
| Max.Head: | >150m | Transfering Material: | Ore,Sand,Coal,Slag,Ash Slurry |
| Advantage: | Highly Anti-abrasive And Anti-corrosive | Power Source: | Electric |
| Color: | Customized | Sealing: | Mechanical Seal, Packing Seal, Auxiliary Impeller Seal |
| Voltage: | 380v Or Customized | ||
| High Light: | 14/12G Slurry Pump Rubber Parts,Volute Liner 150m Head,14/12G Slurry Pump Volute Liner |
||
14/12G Large Capacity Centrifugal Dredging Pump High Chrome Iron Cast Anti-Wear Sand Pump Parts
MainParts

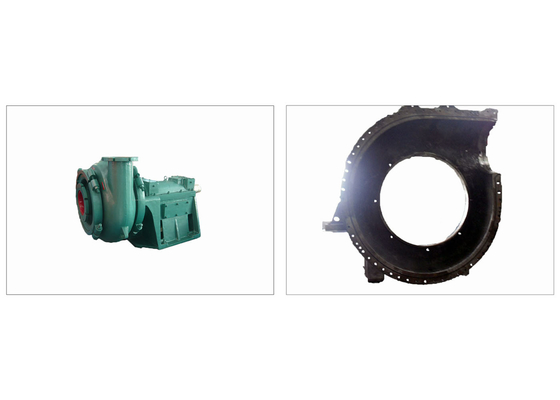

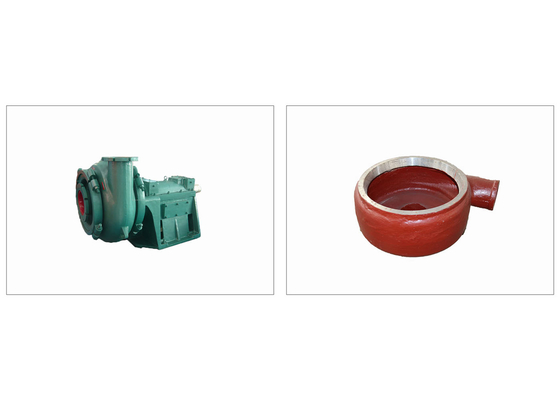

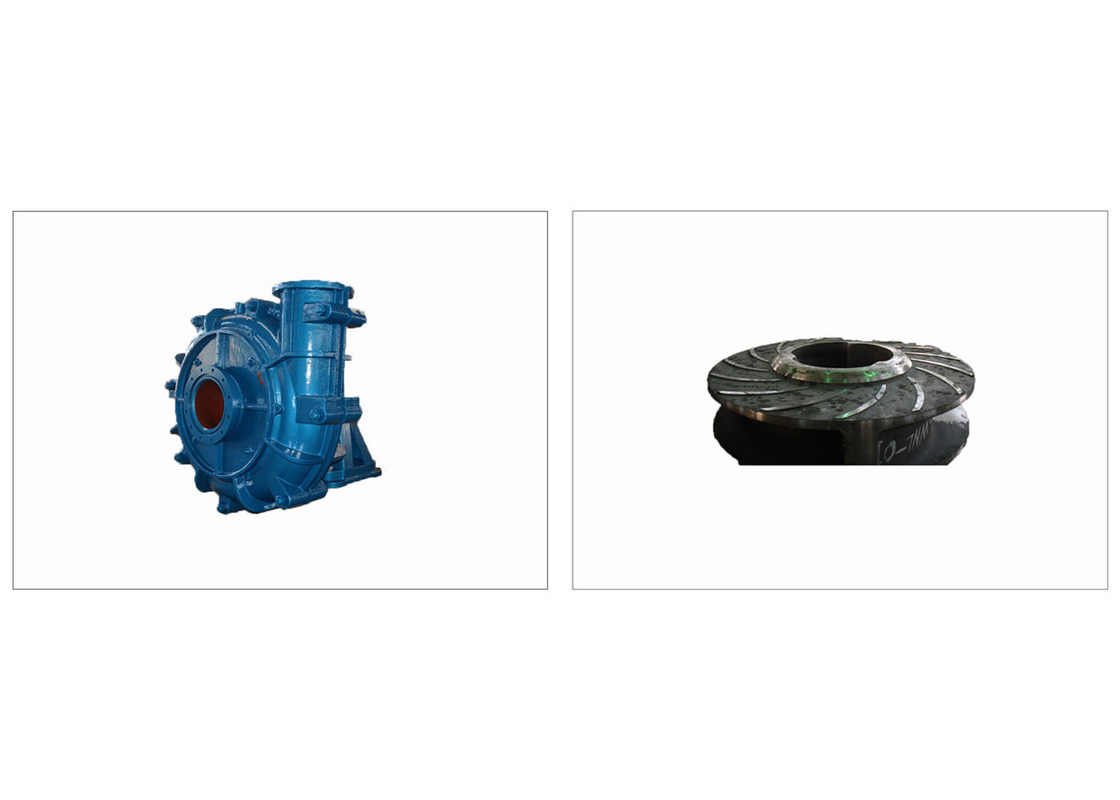

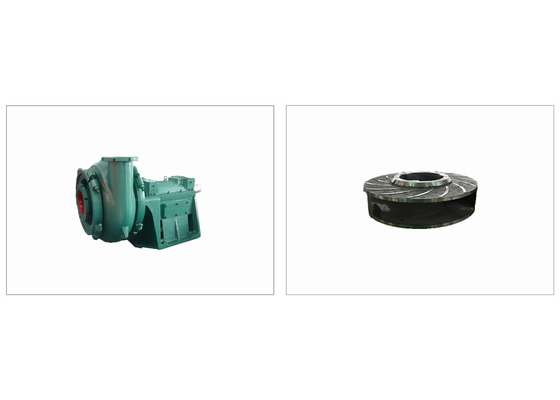

Main pump parts :Cover plate , Frame Plate, Impeller, Pump Liner , Volute Liner , Throat Bush, Frame plate Liner Insert, Back Liner , Expeller, shaft , shaft sleeve, stuffing box,base, Bearing Assembly, Shaft Spacer, base,gland assembly, lantern restrictor and so on.
Liner plate
The liner plates are made of wear-resistant high chromium alloy cast iron (hardness > 56HRC, impact toughness>8 j/cm2).
Suction mouth
The Suction mouth is the important part of the mud pump. It is made of wear-resistant high chromium alloy cast iron. (hardness>58HRC, impact toughness >9 j/cm2 )
Suction ring
The suction rings are made of wear-resistant high chromium alloy cast iron (hardness>56HRC, impact toughness>8 j/cm2).
Horizontal Heavy Duty Mining Sand Minerals Processing Centrifugal Industrial Metal Rubber Slurry Pump
TH series Centrifugal Horizontal Heavy Duty Slurry Pumps are designed for handling highly abrasive,high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.
| dredge pump features: |
| 1.Single stage and single suction |
| 2.haft open impeller |
| 3.anti abrasive material,high chrome alloy(flow parts) |
| 4.Adjustable between impeller and protection plate |
| 5.Max density:50-60%(by weight) |
| 6.easy intallation |
| 7.Efficient working |
Pump parts materials show
| No. | ITEM | MATERIAL |
| 1 | Impeller | High-chrome alloy |
| Rubber | ||
| 2 | Volute casing | High-chrome alloy |
| 3 | Front liner plate | High-chrome alloy |
| Rubber | ||
| 4 | Rear liner plate | High-chrome alloy |
| Rubber | ||
| 5 | Liner | High-chrome alloy |
| 6 | Expeller | High-chrome alloy |
FAQ
Q1: What is your product range?
A:Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump.
Q2: What's your MOQ , payment term and lead time?
A:MOQ for centrifugal pump is 1 set.
