| Max.Head: | >150m | Advantage: | Highly Anti-abrasive And Anti-corrosive |
|---|---|---|---|
| Color: | Customized | Application: | River Dredging, Sand Pumping, Power Plants, Mining, Sewage Tre |
| Material: | Cr27 Cr28 Chrome Alloy/A05/rubber | Pressure: | High Pressure |
| High Light: | OEM Horizontal Centrifugal Pump Parts,Centrifugal Pump Parts Volute Casing,OEM Horizontal volute pump housing |
||
Horizontal Centrifugal Dredging Pump High Chrome Cast Iron Material Anti-Wear OEM Sand Pump Parts
Sand pump introduction
Sand Pumps are cantilevered, horizontal, centrifugal slurry pumps which do heavy duty. They are designed for transferring the highly abrasive or corrosive slurry, high density slurry; they are popular in the metallurgical, mining, coal, power station, sea water river water & channel dredging, building material and other industrial departments. The wet parts of slurry pump is made of high chromium alloy, or abrasive rubber so they are suitable for the liquid with solid, and with acid or alkali, this make the slurry pump powerful and widely used. The pumps of this type can be driven by Electrical motor or by diesel engine or by hydraulic power. The discharge of pump can be in eight positions to suit installations and applications.

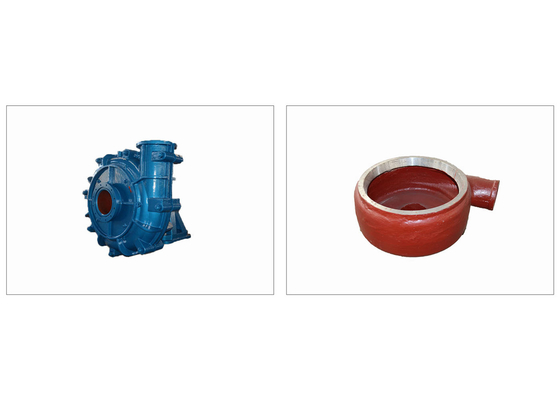

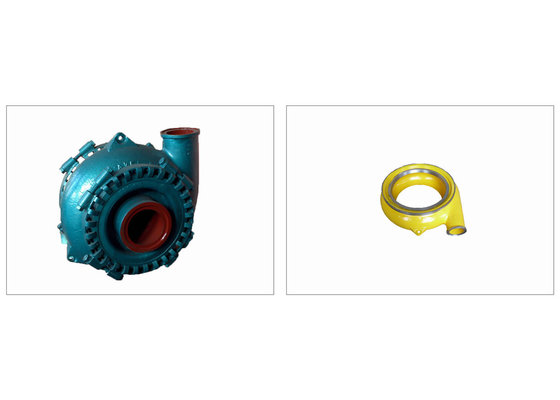

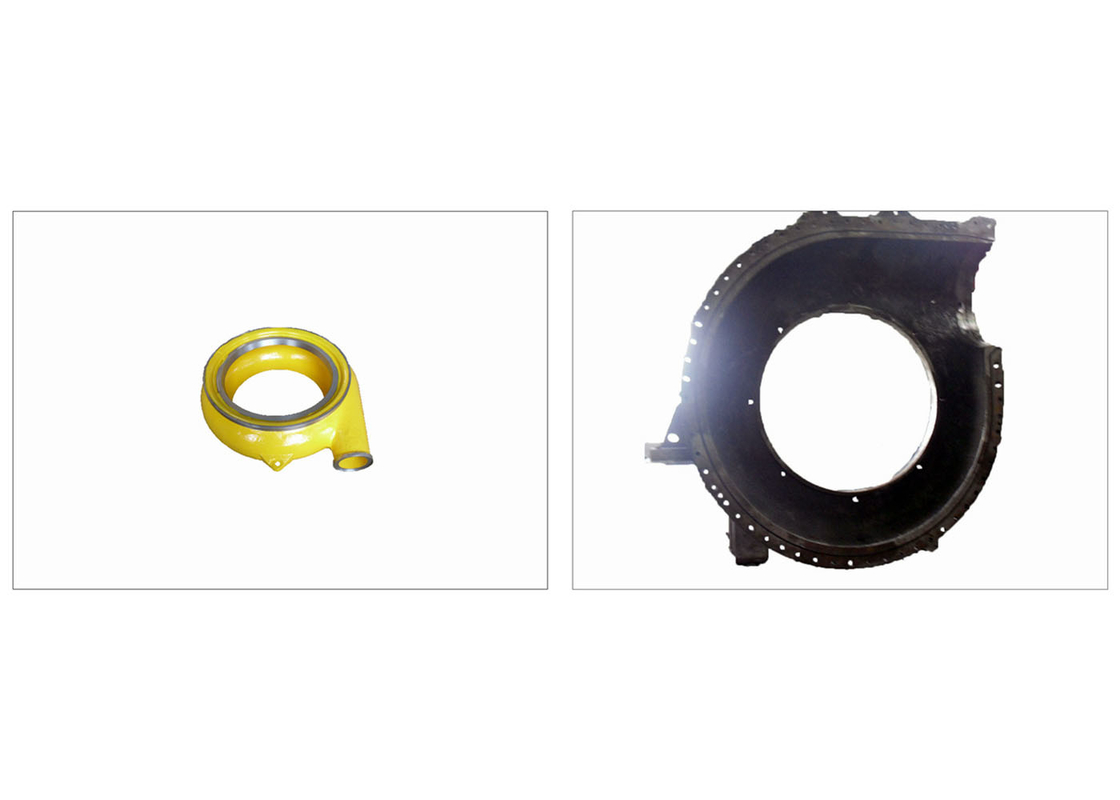

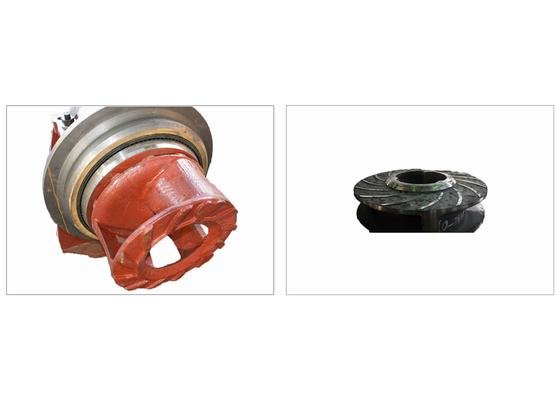

Pump parts materials show
| No. | ITEM | MATERIAL |
| 1 | Impeller | High-chrome alloy |
| Rubber | ||
| 2 | Volute casing | High-chrome alloy |
| 3 | Front liner plate | High-chrome alloy |
| Rubber | ||
| 4 | Rear liner plate | High-chrome alloy |
| Rubber | ||
| 5 | Liner | High-chrome alloy |
| 6 | Expeller | High-chrome alloy |
| 7 | Shaft sleeve | 3Cr13 |
| 8 | Water-seal ring | High-chrome alloy |
| 9 | Shaft | 45#steel quenching And high temperature tempering |
| 10 | Bearing housing | Gray iron |
| 11 | Expeller ring | High-chrome alloy |
| Rubber | ||
| 12 | Front casing | Gray iron or Nodular cast iron |
| 13 | Rear casing | Gray iron or Nodular cast iron |
Product Features:
1. Wear parts are constructed with chromium alloy; so pumps have better stability & longer service life.
2. Unique mechanical seal device can protect the electric motor and ensure high suction efficiency.
3. Additional agitation impeller is equipped to help break and mix the sludge.
4. Easy installation, operation and cost saving, since no extra vacuum pump or pump house is needed.
5. Professional technology support is provided during the whole process of the usage and maintenance.
Short delivery time
For some parts, stocks are available. We have large producing capacity to shorten the delivery time.
OEM Service
Based on many years of rich experience in slurry pump manufacturing and design, we can undertake OEM customization for the whole set of pump and various spare parts. The slurry pump spare parts can be made of various material according to customer's requirement, Such as : Alloy 20, Hastelloy Alloy , A 61 and so on.
