| Outlet Size: | 1 Inch - 16 Inch | Material: | High Chromium Alloy A05 A07 A33 A49 |
|---|---|---|---|
| Application: | River Dredging, Sand Pumping, Power Plants, Mining | Sealing: | Mechanical Seal, Packing Seal, Auxiliary Impeller Seal |
| Color: | As Customized | Advantage: | Highly Anti-abrasive And Anti-corrosive |
| Transferring Medium: | Sand Gravel Slurry | Structure: | Horizontal Single-stage Sand Pump |
| High Light: | Centrifugal Dredge Pump Parts,16 Inch Outlet Sludge Pump Parts,16 Inch Outlet Dredge Pump Parts |
||
Centrifugal Large Capacity Anti-Abrasive High Chrome Cast Iron A05, A07 Material Dredge Pump Parts
Pump Parts

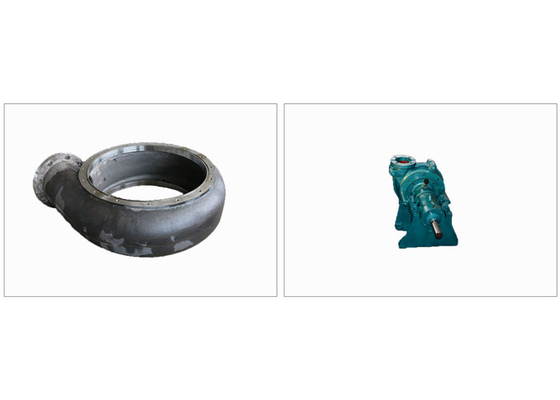

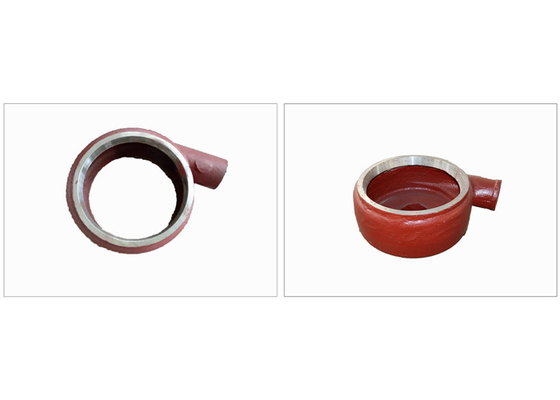

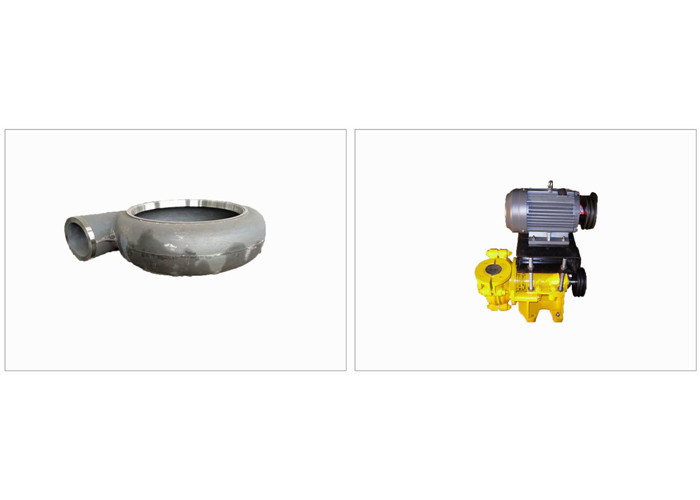

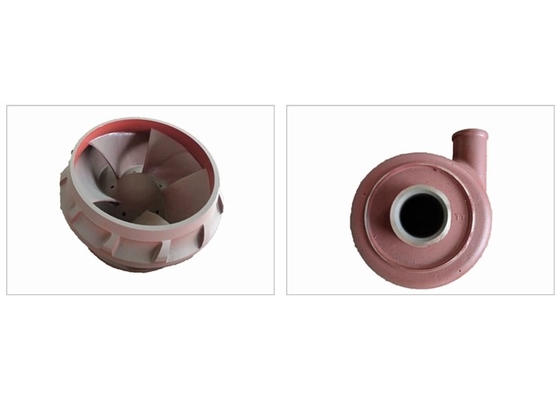

Main pump parts :Cover plate , Frame Plate, Impeller, Pump Liner , Volute Liner , Throat Bush, Frame plate Liner Insert, Back Liner , Expeller, shaft , shaft sleeve, stuffing box,base, Bearing Assembly, Shaft Spacer, base,gland assembly, lantern restrictor and so on.
Completely interchangeable with NH, L, M, HH, SP slurry pumps and G/GH gravel pumps.For unlisted slurry pump parts, OEM service offered. Drawings needed.
Some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
A H Series Heavy Duty Slurry Pump Throat Bush code:
6/4 D-A H Slurry Pump code: E4083
6/4 E-A H Slurry Pump code: E4083
8/6 E-A H Slurry Pump code: F6083
8/6 F-A H Slurry Pump code: F6083
10/8 F-A H Slurry Pump code: F8083
10/8 ST-A H Slurry Pump code: G8083
12/10 ST-A H Slurry Pump code: G10083
14/12 ST-A H Slurry Pump code: G12083
G Series Sand Gravel Pump
12/10G-G Sand Gravel Pump Throat Bush code: FG10013
14/12G-G Sand Gravel Pump Throat Bush code: GG1412013
Frame & Bearing Assembly types
Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.
| Code | Material # | Hardness HRC |
Performance | Application |
| A05 | KmTBCr26 | ≥56 | Ranks second only to A07 in abrasion-resistant performance; fair corrosion-resistant performance. | High impact load abrasion condition; PH rate ranging from 5 to 12 |
| A07 | KmTBCr15Mo3 | ≥59 | Best abrasion-resistant performance; corrosion-resistant performance is inferior to A05 | High impact load abrasion condition |
| A49 | ≥43 | Fair abrasion-resistant performance, close to A03; fair corrosion-resistant performance in media with lower PH rate. | Corrosion conditions with low PH rate, especially for flue gas and FGD devices for media of PH≥4; general suitable for lower acid condition. | |
| A61 | 63-68 | Optimized abrasion-resistant performance than A12 | High abrasive slurry with fine particles. |
