1 - 18 Inch Outlet Dredge Pump Parts Hard Metal Impeller Front Cover

1 - 18 Inch Outlet Dredge Pump Parts Hard Metal Impeller Front Cover

1 - 18 Inch Outlet Dredge Pump Parts Hard Metal Impeller Front Cover
1 - 18 Inch Outlet Dredge Pump Parts Hard Metal Impeller Front Cover 1 - 18 Inch Outlet Dredge Pump Parts Hard Metal Impeller Front Cover 1 - 18 Inch Outlet Dredge Pump Parts Hard Metal Impeller Front Cover 1 - 18 Inch Outlet Dredge Pump Parts Hard Metal Impeller Front Cover

Large Image :  1 - 18 Inch Outlet Dredge Pump Parts Hard Metal Impeller Front Cover

Product Details:
Model Number: G
Payment & Shipping Terms:
Minimum Order Quantity: one
Packaging Details: Wooden Package
Delivery Time: 30-40days
Payment Terms: TT
Supply Ability: 100 per month
Detailed Product Description
Place Of Origin: Hebei, China Structure: Horizontal Single-stage Sand Pump
Outlet Size: 1 Inch - 18 Inch Customized Support: OEM Or ODM
Color: Customized Power Source: Diesel , Electric
Advantage: Highly Anti-abrasive And Anti-corrosive Transferring Material: Ore,Sand,Coal,Slag,Ash Slurry
High Light:

18 Inch Outlet Dredge Pump Parts

,

Hard Metal Impeller Front Cover

,

18 Inch Outlet Dredge Pump Impeller

Dredging Pump Main Flux Apart Impeller, Front Cover And Pump Case Long Life Hard Metal Anti-Wear Dredge Pump Parts





OEM Dredge pump parts

1. Support frame: main part for supporting flow parts, connect with bearing glands on the two sides to form bearing assembly.

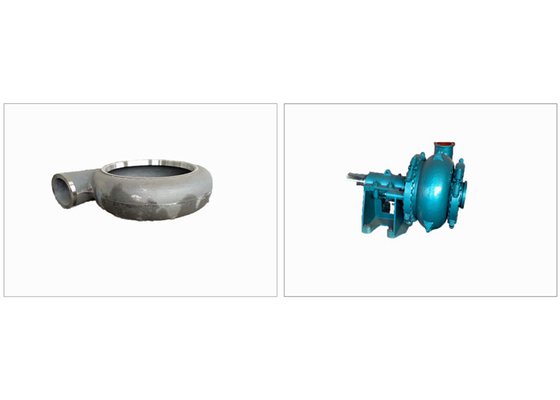

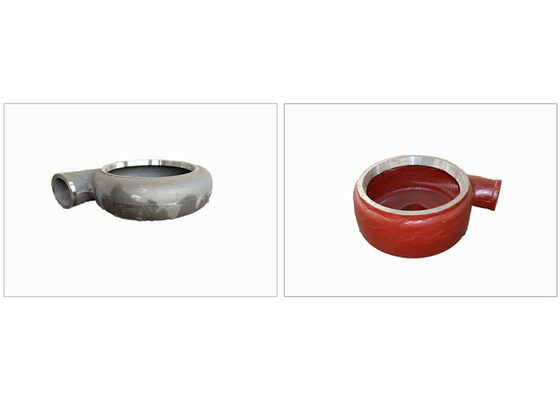

2. Pump casing: connect with support frame by 6 bolts, can rotate in 60°gap according to needs, impeller, protecting plate, pump cover installed inside, material is abrasion resistant, the impeller, pump casing and pump cover of this pump are same as 6PNL-35 vertical mud sand pump.



3. There are two kinds of pump covers: flat pump cover and long pump cover with flange



4. Shaft seal box: installed outside of protecting plate, seal assembly installed in it, it joints shaft sleeve, lubricating it with grease trough grease fitting to prolong lifetime.



5. Shaft sleeve: installed at the back of impeller , can compress tightly by impeller rotation.



6. Water retaining plate: installed in front of the front bearing plate, compressed with a screw so that it can rotate with pump shaft in same speed and direction, and form labyrinth seal with front bearing gland to prevent the liquid spilling from shaft sleeve from damaging bearing.

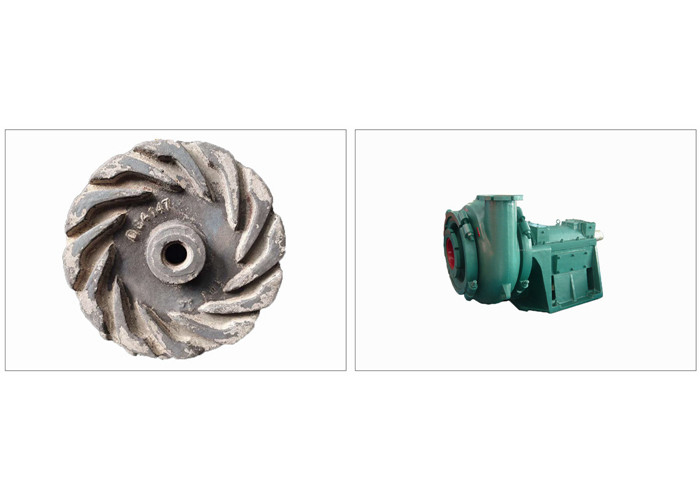

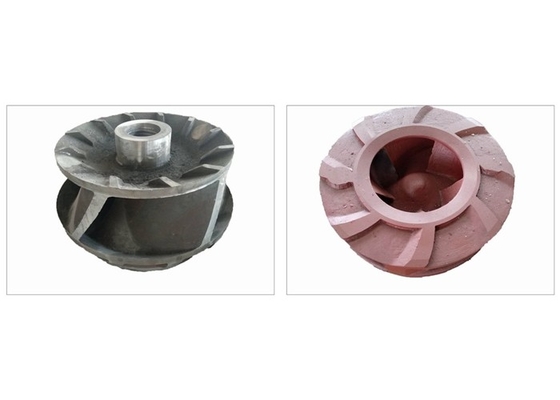

7.Impeller: The impeller generally has three vanes or five vanes and wide application range. It is made of wear-resistant high chromium alloy cast iron (hardness>58HRC, impact toughness>9j/cm2). The impeller is fixed on the pump shaft with double thread, and the thread tolerances are inspeed according to the pitch diameter of thread. Disassembly rings are installed at the rear of the shaft sleeve to make maintenance easy.



No. ITEM MATERIAL
1 Impeller High-chrome alloy
Rubber
2 Volute casing High-chrome alloy
3 Front liner plate High-chrome alloy
Rubber
4 Rear liner plate High-chrome alloy
Rubber
5 Liner High-chrome alloy
6 Expeller High-chrome alloy
7 Shaft sleeve 3Cr13
8 Water-seal ring High-chrome alloy
9 Shaft 45#steel quenching And high temperature tempering
10 Bearing housing Gray iron
11 Expeller ring High-chrome alloy
Rubber
12 Front casing Gray iron or Nodular cast iron
13 Rear casing Gray iron or Nodular cast iron
14 Base Gray iron
15 Support QT500-7





Product Features:

1. Wear parts are constructed with chromium alloy; so pumps have better stability & longer service life.

2. Unique mechanical seal device can protect the electric motor and ensure high suction efficiency.

3. Easy installation, operation and cost saving, since no extra vacuum pump or pump house is needed.

4. Professional technology support is provided during the whole process of the usage and maintenance.





Our service - professional attentive.

* Perfect Quality Control-- We own professional quality management and process inspection team
* Fast High Quality Service--In the process of service, the demands of all customers can be solved quickly and effectively.
* Supply Support Capacity--We ensures the products with good quality, sufficient quantity and diversification.



FAQ

Q1: What is your product range?
A:Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump.
Q2: What's your MOQ , payment term and lead time?
A:MOQ for centrifugal pump is 1 set.
Q3: What payment methods are supported?
A: Payment Term: T/T
