Mining A49 2 Inch Water Pump Impeller semi open Abrasion Resistant

Mining A49 2 Inch Water Pump Impeller semi open Abrasion Resistant

Mining A49 2 Inch Water Pump Impeller semi open Abrasion Resistant
Mining A49 2 Inch Water Pump Impeller semi open Abrasion Resistant Mining A49 2 Inch Water Pump Impeller semi open Abrasion Resistant Mining A49 2 Inch Water Pump Impeller semi open Abrasion Resistant Mining A49 2 Inch Water Pump Impeller semi open Abrasion Resistant

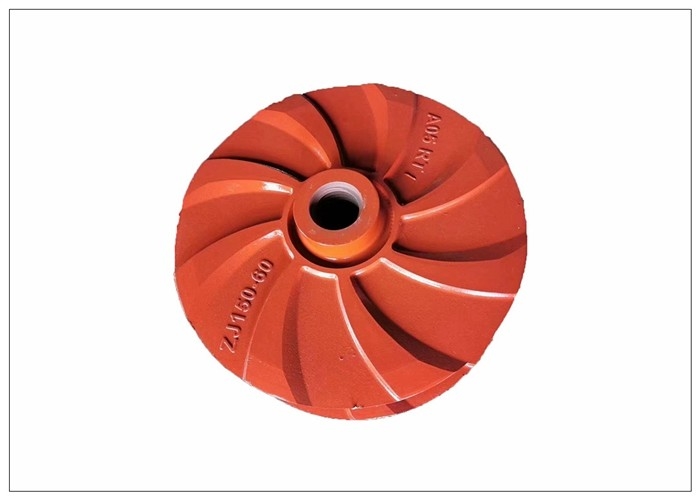

Large Image :  Mining A49 2 Inch Water Pump Impeller semi open Abrasion Resistant

Product Details:
Place of Origin: China
Model Number: G
Payment & Shipping Terms:
Minimum Order Quantity: one
Packaging Details: Wooden Package
Delivery Time: 30-40days
Payment Terms: TT
Supply Ability: 100 per month
Detailed Product Description
Application: Mining Slurry Pump Model Number:: 3/2
Customized Support:: OEM ODM Structure: Single-stage Pump
Impeller Style: Closed Theory: Centrifugal
Highlight:

A49 2 Inch Water Pump Impeller

,

Mining A49 semi open impeller

,

Abrasion Resistant semi open impeller

3/2 Mining High Chrome Cast Iron Abrasion-Resistant Long Life Slurry Pump Impeller



Description

The function of the Slurry pump impeller is to transfer the liquid to the outlet of the [pump. There are three main types of water pump impeller: one with both front and rear cover is enclosed impeller; Only with the rear cover plate is called the semi-open impeller; without either front or rear cover plate called open impeller. In addition, the structural forms of blades can be divided into cylindrical blades and twisted blades.

Generally, the impeller of closed water pump has 2-12 back-curved blades with high operating efficiency. For example, the single-suction centrifugal pumps are equipped with enclosed impeller. Because of the axial force, so some impeller in the root of the blade has a balance hole. The number of semi-open and open impeller blades is small, generally 2~5 pieces, most of which are used for pumping grainy liquid or sewage, such as the impeller of sewage pump.

Water pump impeller material to have enough mechanical strength, and a certain wear resistance, corrosion resistance. According to the requirements of conveying medium, high chrome cast iron, stainless steel is used for mining slurry transferring.



Model

3/2

Input dimension: 3"

Outlet dimension: 2"



Materials

1,General of anti-wear & anti-corrosive materials
Slurry Pump Impeller is one of the most important spare parts pumps. When impeller working, the slurry pump could meet the requirements of the equipment. However, it is a component, which is worn out very easily. Therefore, for long service life of the impeller, the material plays an important role here.



1. A05 is a wear resistant white iron that offers excellent performance under erosive conditions. The alloy can be effectively used in a wide range of slurry types. The high wear resistance of alloy A05 is provided by the presence of hard carbides within its micro-structure. Alloy A05 is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required.

2. A07 Marten-sic white iron with moderate erosion resistance.

3. A49 is suitable for low pH corrosion duties, where erosive wear is also a problem. The alloy is particularly suitable for Flue Gas Desulphu-rization(FGD) and other corrosive applications, where the pH is less than 4. The alloy can also be used in other mildly acidic environments.A49 has an erosion resistance similar to that of Ni-Hard 1



Production Process

- Aluminum Mold: Aluminum mold is able to ensure the accuracy in the cast process and make the blade curve infinitely close to the theoretical value. So that the efficiency of the pump can be improved.

- Heat treatment process:It can eliminate the stress, improve the hardness and prolong the work life.

- Boring and milling process: Professional boring and milling equipement to ensure accuracy.

- Product inspection: The products dimensions, hardness, compositon are strictly inspected by PV engineers.



Our service

1.processing with supplied drawing

2.processing with supplied samples

3.produce all kinds of anti-abrasive spare parts for pump



Application

The impellers are widely used for mining process slurry pumps.
