A33 Slurry Pump Spare Parts Volute Liner HRC 56 Mechanical Sealing

A33 Slurry Pump Spare Parts Volute Liner HRC 56 Mechanical Sealing

A33 Slurry Pump Spare Parts Volute Liner HRC 56 Mechanical Sealing
A33 Slurry Pump Spare Parts Volute Liner HRC 56 Mechanical Sealing A33 Slurry Pump Spare Parts Volute Liner HRC 56 Mechanical Sealing A33 Slurry Pump Spare Parts Volute Liner HRC 56 Mechanical Sealing A33 Slurry Pump Spare Parts Volute Liner HRC 56 Mechanical Sealing

Large Image :  A33 Slurry Pump Spare Parts Volute Liner HRC 56 Mechanical Sealing

Product Details:
Place of Origin: China
Model Number: G
Payment & Shipping Terms:
Minimum Order Quantity: one
Packaging Details: Wooden Package
Delivery Time: 30-40days
Payment Terms: TT
Supply Ability: 100 per month
Detailed Product Description
Customized Support: OEM, ODM Sealing: Mechanical Seal, Packing Seal, Auxiliary Impeller Seal
Material: Cr26, Cr27, Cr28, A05, A49,chrome Cast, Alloy Hardness: HRC 56-63
High Light:

A33 Slurry Pump Spare Parts

,

Volute Liner HRC 56 Mechanical Sealing

,

Slurry Pump Spare Parts Volute Liner

mining slurry pump inner liner wear-resistant high chrome cast pump liner



Introduction

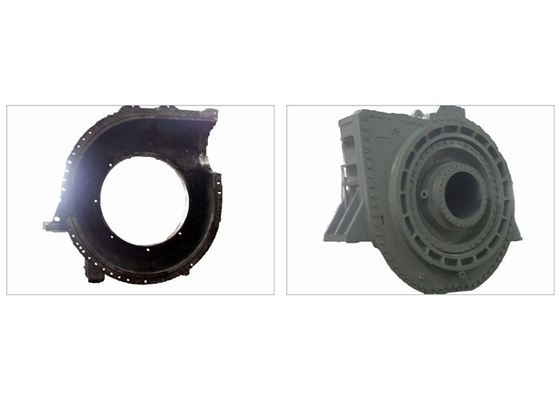

The slurry pump parts consists wet parts, sealing parts, bearing assembly, pedestal and other parts.

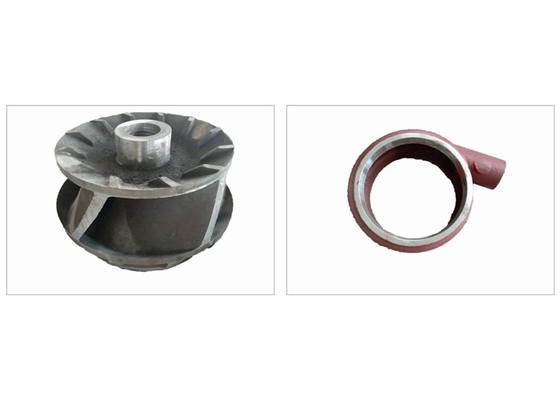

In slurry pump, Wet Parts means the lining parts which contact with fluid media, usually it include impeller, volute, frame plate, throat bush. There parts will easily get corrosived or abrasived when working and get repalced every periods.
Usually the pump parts are made of iron, steel, bronze, brass, aluminum, plastic etc. For Slurry pumps they are normally made of High chrome alloy, elastomer, polyurethane, ceramic and some other customed. But High chrome alloy and elastomer are now the main material for the slurry pumps. Recent years some companies are trying to make wet parts by ceramics and many data come from labs and mills show that the ceramic wet parts can work for a longer time than high chrome alloy.



Product Features:

1. Wear parts are constructed with chromium alloy; so pumps have better stability & longer service life.

2. Unique mechanical seal device can protect the electric motor and ensure high suction efficiency.

3. Additional agitation impeller is equipped to help break and mix the sludge.

4. Easy installation, operation and cost saving, since no extra vacuum pump or pump house is needed.

5. Professional technology support is provided during the whole process of the usage and maintenance.



Code Material # Hardness
HRC
Performance Application
A05 KmTBCr26 ≥56 Ranks second only to A07 in abrasion-resistant performance; fair corrosion-resistant performance. High impact load abrasion condition; PH rate ranging from 5 to 12
A07 KmTBCr15Mo3 ≥59 Best abrasion-resistant performance; corrosion-resistant performance is inferior to A05 High impact load abrasion condition
A33   ≥35 Abrasion-resistant performance is close to A03; fair corrosion-resistant performance Oxide slurry with PH rate no less than 1, like phosphor-gypsum in phosphate fertilizer plant, nitric acid, sulph-oacid and phosphoric acid, etc.
A49   ≥43 Fair abrasion-resistant performance, close to A03; fair corrosion-resistant performance in media with lower PH rate. Corrosion conditions with low PH rate, especially for flue gas and FGD devices for media of PH≥4; general suitable for lower acid condition.
