| Pump Model: | ,HH | Material: | High Chrome Cast Iron,A05,A49, A07 |
|---|---|---|---|
| Application: | Mining, Tailing, Sewage Water | Color: | Blue , Grey , Yellow And Etc. |
| Pump Structure: | Single Stage | Pump Thoery: | Centrifugal |
| High Light: | HH Pump Volute Liner,30% Cr Pump Volute Liner,30% Cr Wear Resistant Pump Liner |
||

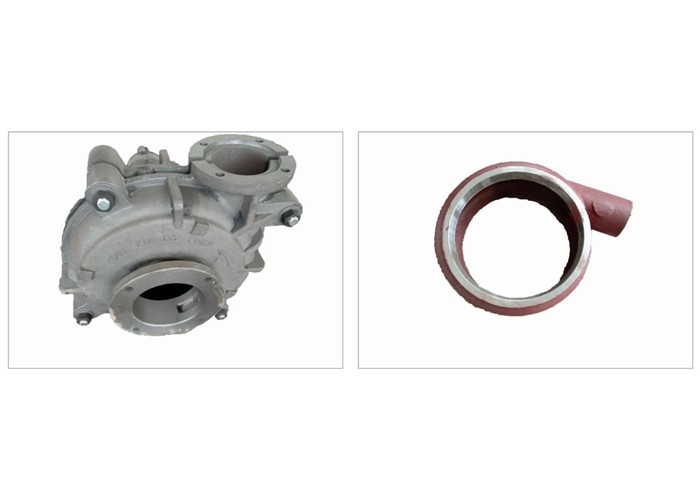

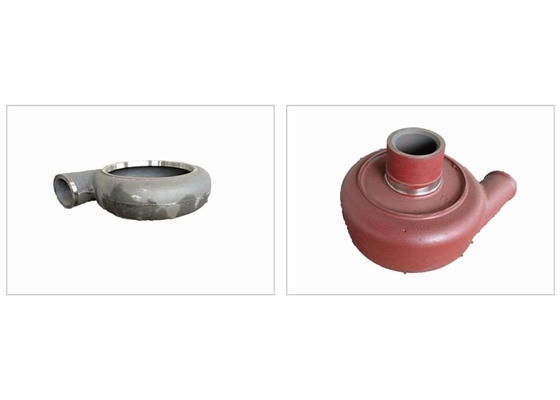

Pump liner is the important wet part of the pump. As the medium that the pump transfers contains ORE, sand and stones, the pump liner is also a a comsuable of the pump. The material of the pump liner is high chrome cast iron alloy, Cr26, Cr27, Cr28, which is anti-abrasive.
| Material Code | Material Description | Application Components |
| CSA05 | 23%-30% Cr White Iron | Impeller, liners, expeller, expeller ring, stuffing box |
| CSA49 | 27%-29% Cr Low Carbon White Iron | Impeller, liners, expeller, expeller ring, stuffing box |
| CSU01 | Polyurethane | Impeller, front liner, back liner,throat bush |
| CS | Natural Rubber | Impeller, front liner, back liner,throat bush |
| CSR33 | Natural Rubber | Impeller, front liner, back liner,throat bush |
| CSD21 | Ductile Iron | Frame plate, cover plate, bearing house, base |
| CSG01 | Grey Iron | Frame plate, cover plate, expeller, expeller ring, bearing house, base |
| CSC21 | Stainless Steel, 4Cr13 | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| CSC22 | Stainless Steel, 304SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| CSC23 | Stainless Steel, 316SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| CSE05 | Carbon Steel | Shaft |
| CSS21 | Butyl Rubber | Joint rings, joint seals |
| CSS01 | EPDM Rubber | Joint rings, joint seals |
| CSS10 | Nitrile | Joint rings, joint seals |
| CSS31 | Hypalon | Impeller, liners, expeller ring, expeller, joint rings, joint seals |
| CSS44/K S42 | Neoprene | Impeller, liners, Joint rings, joint seals |
| CSS50 | Joint rings, joint seals |

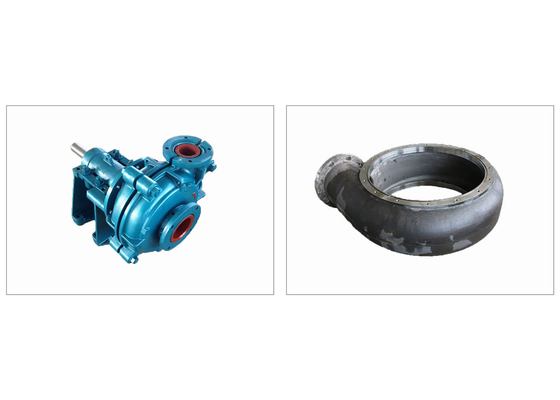

The pump volute liner is widely used for Mining slurry pump , dredging pump, power plant desulphurization pump, copper mining pump, tailing , gold mining etc. ODM and OEM is available. Experts in our foundry are able to make casting mold according the drawing.
Direct from manufacture
1. Quick Reply
Your inquiry related to our products or prices will be replied within 12 hours.
2. We have a group of high quality technicians with rich experience who can solve everything during the whole process.
3. Guarantee quality, All the products have proved by ISO 9001:2008, CE, SGS. And also will be inspected strictly before delivery.
4. Perfect after -sales .We will be responsible for the whole life period
5. OEM order.Many material are available ,like High chrome, rubber , stainless steel and etc.Steely alloy
