| Material: | High Chrome Alloy,A05,A07, A49 | Pump Type: | 6/4E- |
|---|---|---|---|
| Blades Of Impeller: | 5 | Application: | Gold Mining,Iron Ore Transfering, Copper Mining, Coal Mining, Tailing |
| Input Size: | 6" | Output Size: | 4" |
| Pump Theory: | Centrifugal | ODM: | Available |
| OEM: | Available | Pump Structure: | Single-stage Horizontal |
| High Light: | 6/4E- Sand Pump Impeller Liner,Pump Impeller Liner 5 Blades,6/4E- Centrifugal Sand Pump Impeller |
||
Gold mining wear-resistant hard metal centrifugal 6/4E- slurry pump impeller liner
Product Description

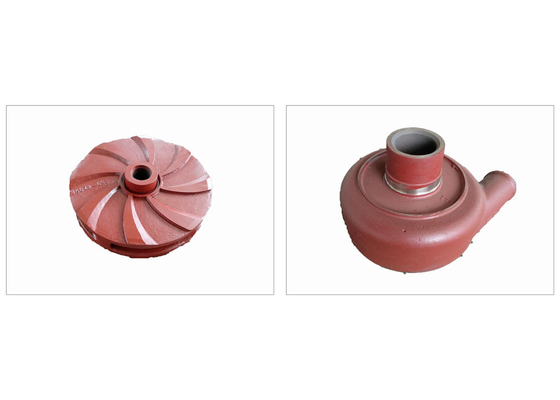

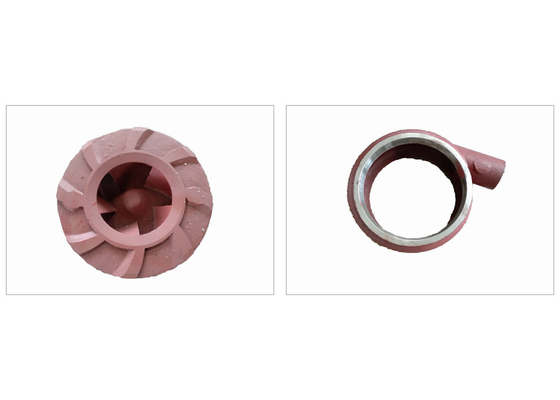

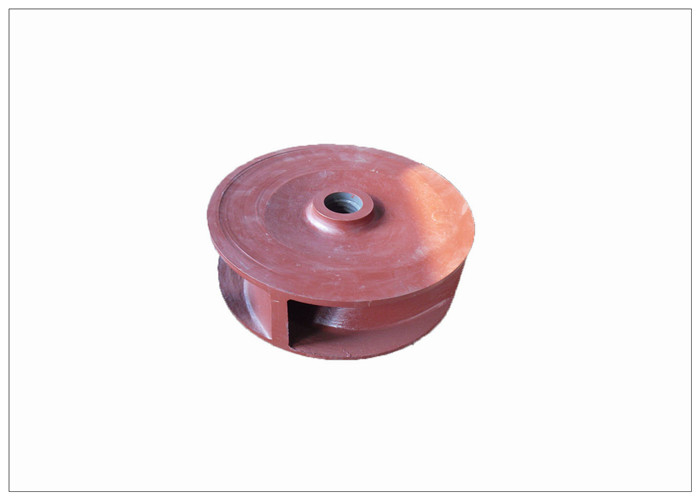

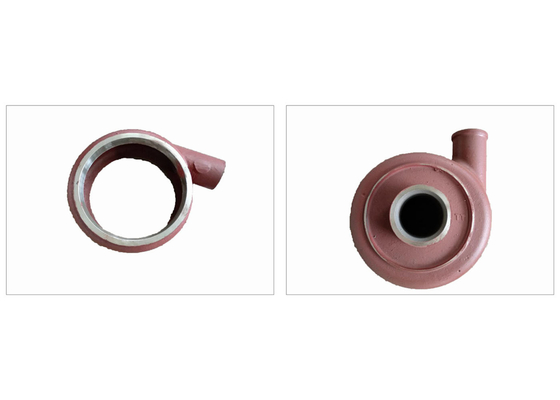

The impeller is the rotating wet parts. Volute liner of slurry pump 6/4E- are the important wet parts for transfers slurry.They can be replacement of wet parts of warman slurry pump 6/4E-. The material of the impeller and volute liner them are wear resistant and erosion resistant. The material is hard metal high chrome alloy Cr26, Cr27, Cr28, A05, A07, A09. .
Characteristics
| -OEM and ODM available |
| -Input diameter size: 6" |
| -Output diameter size:4" |
| -Number of impeller blades: 5 |
| -Hardness (HRC56-63) |
| -Diameter of the impeller wheel: 397mm |
| -Diameter of the impeller blades: 365mm |
| -Pump structure: horizontal single-stage |
| -Pump thoery: Centrifugal |
Technology
High chrome alloy material
| 1. A05 is a wear resistant white iron that offers excellent performance under erosive conditions.The high abrasive-resistance of A05 is supported by the presence of hard carbides within its micro-structure. Alloy A05 is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required. |
| 2. A07 Marten-sic white iron with moderate erosion resistance. |
| 3. A49 is usually apply in low pH corrosion duties, where erosive-resistance is also needed. The alloy is particularly suitable for Flue Gas Desulphu-rization(FGD) and other corrosive applications, pH less than 4. A49 has an erosion resistance similar to that of Ni-Hard |
Casting
Application
Impeller and volute liner is usd for warman type 6/4D- slurry pump wet parts replacement. 6/4D- slurry pump is widely applied in iron ore, chemical fertilizer, coal mining, tailing, sewage disposal, powe plant FDG, gold mine, copper mine, nickel mine, and etc. The material high chrome alloy Cr26,Cr27,Cr28,A05,A07,A49 is suitable for wear-resistance and erosion resistance working conditions. Slurry pump parts ODM is also available.We can make the parts as the drawing that customer sends to us. Our experts in the foundry are able to make the cast mould according the drawing.
