| Application: | Dredge Boat | Wet Parts Material: | High Chrome Cast Iron |
|---|---|---|---|
| High Light: | G Type A07 Sand Dredge Pump,A07 dredging sand pump Easy Installation,G Type horizontal sand pump |
||

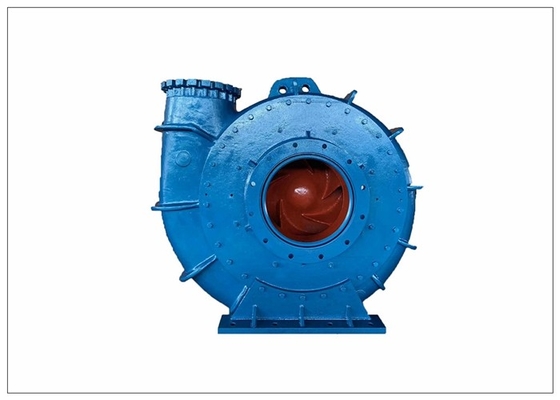

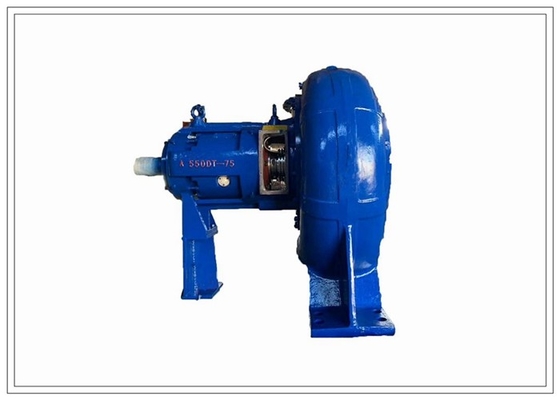

Sand gravel abrasion-resistant long life dredge pump is applied on dredge boat for transfering water mix with sand and gravel.
Full range of dredge pumps to suit all needs
Custom-built designs
Robust and reliable
Material of pump parts
| Part Name | Material | Specification | HRC | Application | OEM Code |
| Bowl, door, back liner & impeller | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| AB15: 14%-18% chrome white iron | ≥59 | Used for higher wear condition | A07 | ||
| AB29: 27%-29% chrome white iron | 43 | Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 | A49 | ||
| AB33: 33%-37% chrome white iron | It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. | A33 | |||
| Expeller & expeller ring | Metal | B27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
