| Impeller: | Closed Impeller | Flow Rate: | 31 - 200 L/M |
|---|---|---|---|
| Application: | Machining, Marine, Metal And Equipment Manufacturers, Min | Material: | Cr27 Cr28 Chrome Alloy/A05/rubber |
| Power Source: | Electric | Product Name: | Pump Spare Parts |
| Color: | Customers' Requirement | OEM: | Availiable |
| Structure: | Single-stage Pump | Usage: | Impeller And Wet Parts For Slurry Pump |
| Outlet Size: | 1''-18'' | Transferring Material: | Ore,Sand,Coal,Slag,Ash Slurry |
| Theory: | Centrifugal | Spare Parts: | Impeller, Cover Plate Liner, Frame Plate Liner, Packing |
| High Light: | 200L/M Slurry Pump Parts,18'' Outlet Slurry Pump Parts,18'' Outlet Closed Impeller |
||
Iron Mining, Copper Mining, Coal Mining Pump Hard Metal High Chrome Cast Slurry Pump Parts
Product Description

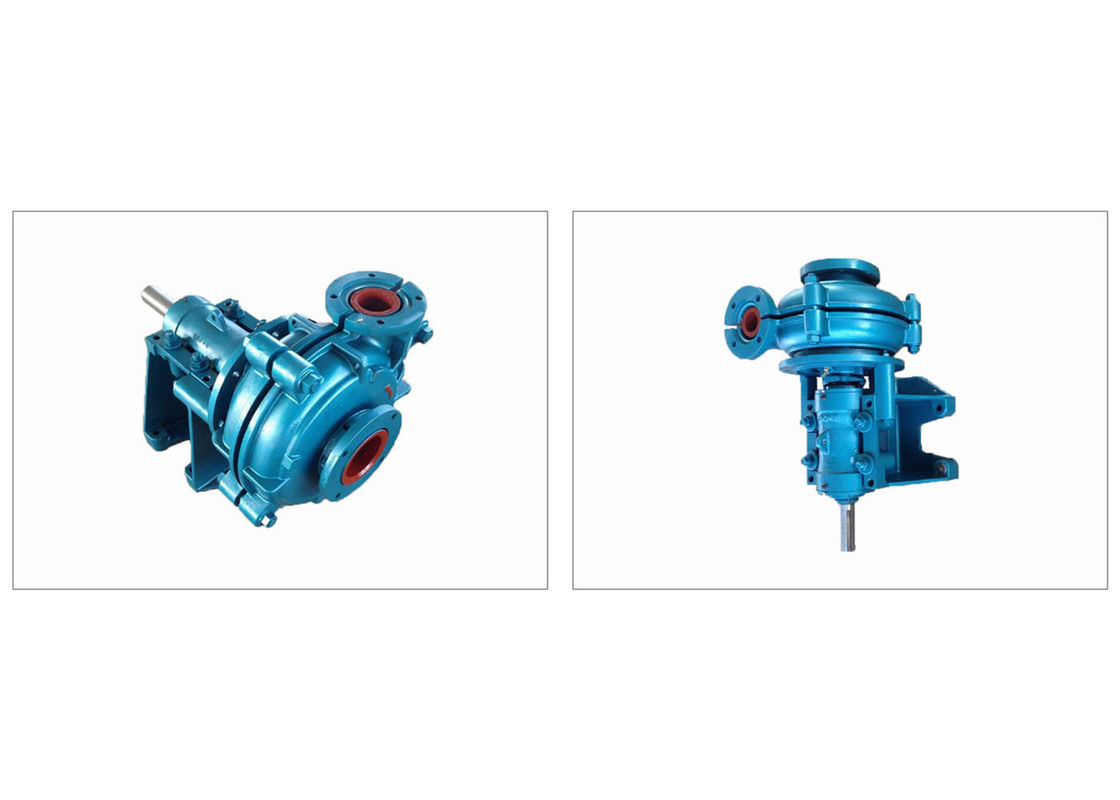

Slurry pumps are cantilevered, horizontal, centrifugal slurry pumps which do heavy duty. They are designed for transferring the highly abrasive or corrosive slurry, high density slurry; they are popular in the metallurgical, mining, coal, power station, sea water river water & channel dredging, building material and other industrial departments. The wet parts of slurry pump is made of high chromium alloy, or abrasive rubber so they are suitable for the liquid with solid, and with acid or alkali, this make the slurry pump powerful and widely used. The pumps of this type can be driven by Electrical motor or by diesel engine or by hydraulic power. The discharge of pump can be in eight positions to suit installations and applications. The shaft seals can be adoptable of gland seal or expeller seal, or mechanical seal.
OEM codes
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
A H Series Heavy Duty Slurry Pump Throat Bush code:
6/4 D-A H Slurry Pump code: E4083
6/4 E-A H Slurry Pump code: E4083
8/6 E-A H Slurry Pump code: F6083
8/6 F-A H Slurry Pump code: F6083
10/8 F-A H Slurry Pump code: F8083
10/8 ST-A H Slurry Pump code: G8083
12/10 ST-A H Slurry Pump code: G10083
14/12 ST-A H Slurry Pump code: G12083
| Metal Pumps Material | ||
| No | Part | Material |
| 1 | Base | Cast Iron |
| 2 | Shaft | 4140 High Tensile Steel* |
| 3 | Bearing Assembly | Timken (Cast Iron Body) |
| 4 | Shaft Sleeve | 420 Stainless Steel |
| 5 | Pump Casing | Cast Iron |
| 6 | Frame Plate Liner | 27% Chrome White Iron |
| 7 | Volute Liner | 27% Chrome White Iron |
| 8 | Impeller | 27% Chrome White Iron |
| 9 | Throat Bush | 27% Chrome White Iron |
| 10 | Joint Rings | Rubber |
| 11 | Cover Plate | Cast Iron |
| 12 | Stuffing Box | Cast Iron |
| 13 | Expeller | 27% Chrome White Iron |
| 14 | Expeller Ring | Natural Rubber |
| 15 | Bolts | Zinc Plated Steel |
| 16 | O-rings | Nitrile Rubber |
| 17 | Seals | Rubber |
Application
Slurry Pump —Product application
The part of the slurry pump is made of high-chromium wear-resistant alloy or natural rubber material, and its wear resistance has won international praise and recognition. Slurry pump is an ideal tool for conveying abrasive and corrosive materials.
Application range
Concentrating/metallurgical plant: it deliveries a variety of slurries.
Sand plant: it feeds water and mineral sands to all kinds of classifying and dehydrating equipments.
Coal preparation plant: it deliveries coal pulps; it also classifies, screens and conveys materials of heavy medium.
Ceramic and glass plant: it is used to convey porcelain clay and sands, feed hydraulic cyclone, and dispose effluent.
Steel plant: it conveys slurry, rust and corrosive liquid.
Please specify it to us if the pump is applied to places where oil or chemical stuffs are present.
